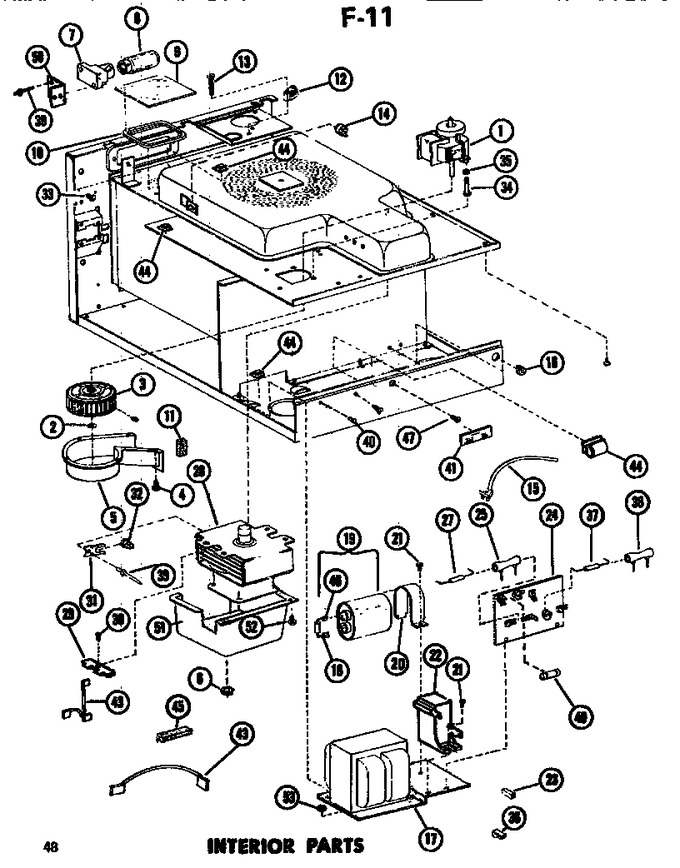

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C8738505		Motor 50 Cy		Appelez-nous	-
2	WP3195558		Clip-blwr Ret   (Replaces: M0118903)				$ 7.68
3	C8793501		Blower Wheel		Appelez-nous	-
4	M0230028		Screw, No.8-32 X 5/16 Pph (blk)		Appelez-nous	-
5	C8844201		Scroll-blower		Appelez-nous	-
6	A3258801		Grommet		Appelez-nous	-
7	B5764301		Socket-lamp		Appelez-nous	-
8	A3167503		Bulb-250 V		Appelez-nous	-
9	A3213701		Window-oven Light		Appelez-nous	-
10	M0275554		Sealer Ft. A / K		Appelez-nous	-
11	A3030332		Gasket-per Ft		Appelez-nous	-
12	A3214202		Switch-interlock		Appelez-nous	-
13	M0227525		Screw A-k		Appelez-nous	-
14	B5665810		Thermal Cut Out		Appelez-nous	-
15	B5669002		Power Cord		Appelez-nous	-
16	A3278802		Strain Relief		Appelez-nous	-
17	D7374501		Transformer		Appelez-nous	-
18	M0305202		Resistor A		Appelez-nous	-
19	R0160029		Capacitor Assy		Appelez-nous	-
20	A3197101		Strap-capacitor A		Appelez-nous	-
21	M0216517		Screw		Appelez-nous	-
22	11QBP0235		Kit, Diode   (Replaces: B5767801)				$ 15.33
23	M0325301		Insulator, Term. K		Appelez-nous	-
24	C8826301		Terminal Board		Appelez-nous	-
25	M0308601		Resistor A		Appelez-nous	-
27	M0308102		Fuse		Appelez-nous	-
28	C8761708		Magnetron		Appelez-nous	-
29	B5774401		Brkt-mag Tube		Appelez-nous	-
30	67006425		Screw   (Replaces: M0216530)			Immediately	$ 6.26
31	B5725102		Clip		Appelez-nous	-
32	B5665812		Thermal Cutout		Appelez-nous	-
33	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.04
34	M0202642		Screw		Appelez-nous	-
35	M0272605		Washer		Appelez-nous	-
36	M0325501		Insulator, Pod K		Appelez-nous	-
37	M0308106		Fuse		Appelez-nous	-
38	M0305011		Resistor, 500 Ohm, 8 Watt		Appelez-nous	-
39	A4539601		Pop Rivet		Appelez-nous	-
40	M0251002		Screw		Appelez-nous	-
41	B5738501		Seal K		Appelez-nous	-
43	C3655887		Jumper Wire		Appelez-nous	-
43	C3655888		Jumper Wire		Appelez-nous	-
44	WPM0104106		Clip,cord   (Replaces: M0104101)				$ 7.00
45	A3030308		Gasket		Appelez-nous	-
46	M0320542		Terminal		Appelez-nous	-
47	M0251017		Screw		Appelez-nous	-
49	A3194302		Fuse, 10 Amp		Appelez-nous	-
50	B5764701		Brkt-lite Socket		Appelez-nous	-
51	D7354301		Duct-outlet		Appelez-nous	-
52	M0216517		Screw		Appelez-nous	-
53	WP487939		Nut   (Replaces: M0282015)				$ 6.95
