SELECT A DIAGRAM

01 - Defrost


02 - Exterior


03 - Interior


04 - Interior

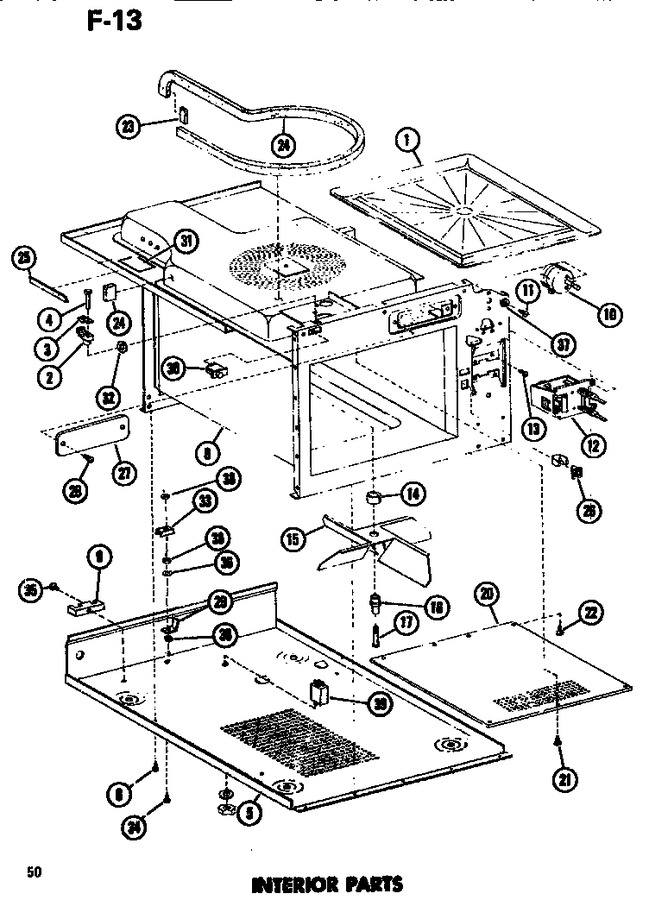

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7191101		Oven Tray		Appelez-nous	-
2	C3696903		Bushing		Appelez-nous	-
3	C3696902		Bushing		Appelez-nous	-
4	A3211102		Pin-door Stop		Appelez-nous	-
5	C3694411		Base Pan Weld		Appelez-nous	-
6	M0230015		Screw		Appelez-nous	-
8	D7321919		Weldment, Oven Cavity		Appelez-nous	-
9	A3259301		Terminal Block		Appelez-nous	-
10	C8809201		Timer-dial 15 Min		Appelez-nous	-
11	WPW10068250		Screw   (Replaces: M0202530)				$ 3.66
12	C3695504		Switch		Appelez-nous	-
13	M0241205		Screw		Appelez-nous	-
14	B5704202		Bushing		Appelez-nous	-
15	C8720802		Fan Blade-stirrer		Appelez-nous	-
16	A3214801		Bearing		Appelez-nous	-
17	A3214903		Shoulder Screw		Appelez-nous	-
20	D7206602		Grease Shield K		Appelez-nous	-
21	M0230015		Screw		Appelez-nous	-
22	M0130101		Clip K		Appelez-nous	-
23	A3030323		Gasket, Cond. Base Pan Flange-		Appelez-nous	-
24	A3030333		Gasket (1=1ft.)		Appelez-nous	-
25	A3030302		Gasket		Appelez-nous	-
26	M0100702		Catch, Door Strike		Appelez-nous	-
27	B5700201		Access Panel		Appelez-nous	-
28	M0230814		Screw		Appelez-nous	-
29	M0320901		Terminal		Appelez-nous	-
30	B5762101		Switch		Appelez-nous	-
31	M0275023		Tape,alum Per Roll		Appelez-nous	-
32	M0270502		Washer		Appelez-nous	-
33	A3197701		Washer-u Type		Appelez-nous	-
34	M0202520		Screw		Appelez-nous	-
35	M0229005		Screw K		Appelez-nous	-
36	M0270524		Washer		Appelez-nous	-
37	M0272402		Lock Washer		Appelez-nous	-
38	M0282005		Nut K				$ 7.07
39	B5717801		Line Filter Xx		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
