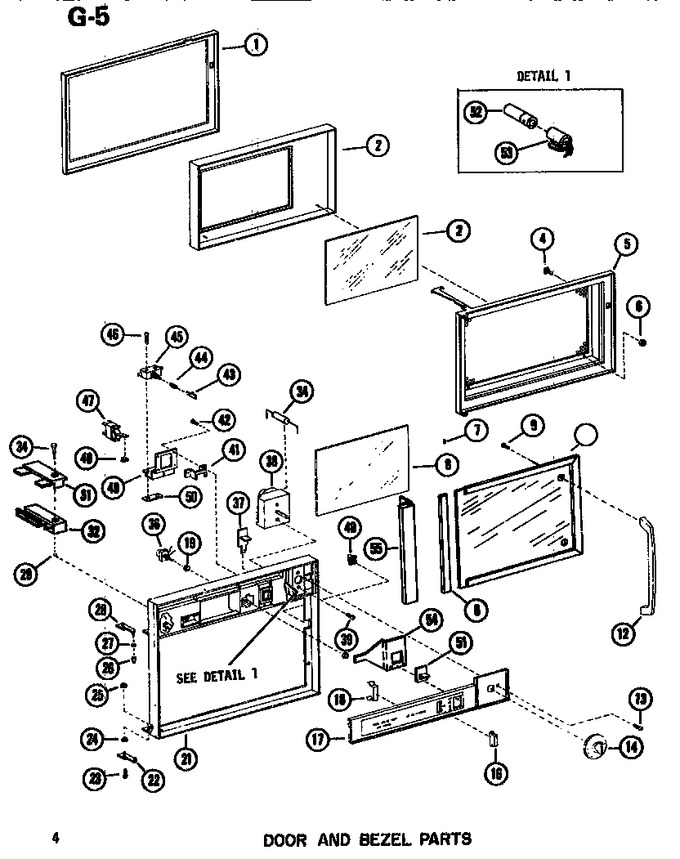

01 - Door & Bezel
02 - Electrical
03 - Interior
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D7104802 | Gasket, Door |
|
- | |||||
| 1 | M0275141 | Tape, Gasket To Door, 1`` |
|
- | |||||
| 2 | D7143801 | Door |
|
- | |||||
| 4 | M0100801 | Strike,door Catch |
|
- | |||||
| 5 | D7110405 | Inner Door Weld- A |
|
- | |||||
| 6 | M0288801 | Nut K |
|
- | |||||
| 6 | M0285401 | Push Nut |
|
- | |||||
| 7 | M0229916 | Screw T.c |
|
- | |||||
| 8 | C3680102 | Window Outer Dr |
|
- | |||||
| 8 | A3245001 | Gasket |
|
- | |||||
| 9 | M0230017 | Screw,tc |
|
- | |||||
| 12 | B5657202 | Handle-door |
|
- | |||||
| 13 | M0227519 | Screw |
|
- | |||||
| 14 | D7229701 | Knob |
|
- | |||||
| 16 | C3657301 | Push Button |
|
- | |||||
| 17 | D7251301 | Escutcheon-control |
|
- | |||||
| 18 | B5662803 | Clip-escutcheon |
|
- | |||||
| 19 | M0281401 | Nut A |
|
- | |||||
| 21 | D7108608 | Bezel-oc |
|
- | |||||
| 22 | B5738701 | Hinge Plate |
|
- | |||||
| 23 | M0204716 | Screw |
|
- | |||||
| 24 | M0272402 | Lock Washer |
|
- | |||||
| 25 | WP488130 | Nut (Replaces: M0282007) |
|
$ 6.27 | |||||
| 26 | A3168101 | See Svc Ltr Cr-163d |
|
- | |||||
| 27 | M0272402 | Lock Washer |
|
- | |||||
| 28 | B5738601 | Hinge Plate |
|
- | |||||
| 30 | A3222601 | Pin-door Stop |
|
- | |||||
| 31 | C8710902 | Bushing-door Stop |
|
- | |||||
| 32 | C8710901 | Bushing-door Stop |
|
- | |||||
| 33 | A3171501 | Clip,hairpin |
|
- | |||||
| 34 | M0305008 | Resistor |
|
- | |||||
| 36 | B5704501 | Switch |
|
- | |||||
| 37 | B5654701 | Door Latch |
|
- | |||||
| 38 | C3658006 | Timer |
|
- | |||||
| 39 | M0202533 | Screw K |
|
- | |||||
| 40 | M0100702 | Catch, Door Strike |
|
- | |||||
| 41 | A3170801 | Retainer,latch |
|
- | |||||
| 42 | M0228015 | Screw |
|
- | |||||
| 43 | A3166502 | Bar Lock |
|
- | |||||
| 44 | A3167601 | Spring,lock Bar |
|
- | |||||
| 45 | M0340702 | Switch A |
|
- | |||||
| 46 | M0202521 | Screw |
|
- | |||||
| 47 | M0340801 | Switch, Paddle, Door Lock |
|
- | |||||
| 48 | M0900003 | Gasket A |
|
- | |||||
| 49 | B5658301 | Bracket,switch |
|
- | |||||
| 50 | M0289502 | Speed Nut |
|
- | |||||
| 51 | C3657401 | Door Latch |
|
- | |||||
| 52 | A3171201 | Bulb |
|
- | |||||
| 53 | B5668701 | Lampholder |
|
- | |||||
| 54 | A3195701 | Guides Hndl K |
|
- | |||||
| 54 | C3662701 | Plate-ret |
|
- | |||||
| 55 | C3679802 | Trim |
|
- | |||||
| 56 | D7228401 | Trim-door |
|
- | |||||
| NI | A3030308 | Gasket |
|
- | |||||
| NI | B5662701 | (+) Bracket We |
|
- | |||||
| NI | A3030328 | Gasket (1= 1ft.) |
|
- |
