01 - Door & Bezel

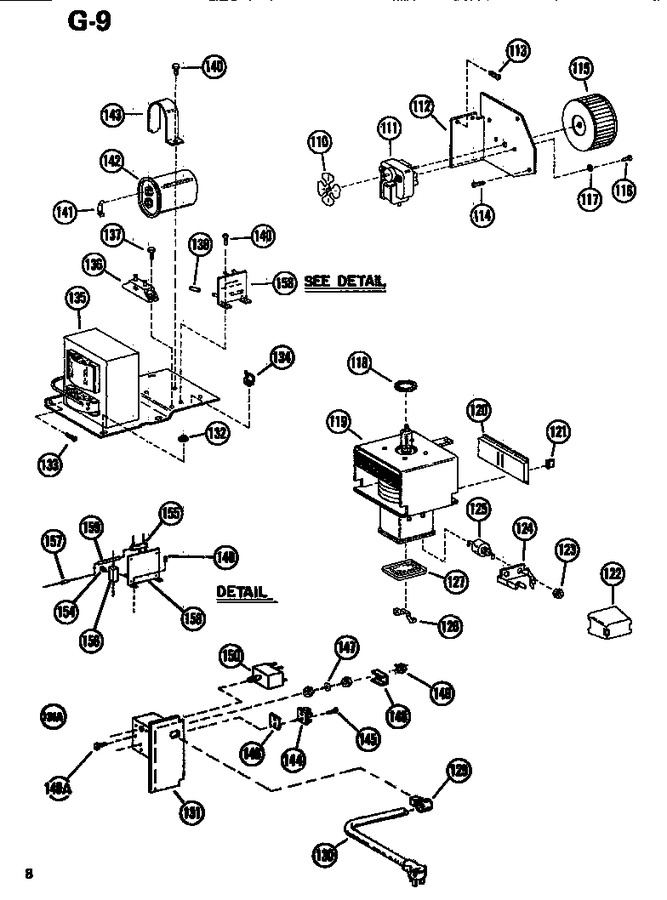

02 - Electrical
03 - Interior
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 110 | B5661801 | Fan Blade |
|
- | |||||
| 111 | M0306702 | Motor, Blower |
|
- | |||||
| 112 | B5657501 | Bracket,motor Mount |
|
- | |||||
| 113 | WP90767 | Screw (Replaces: M0216529) |
|
Immediately | $ 7.04 | ||||
| 114 | M0230017 | Screw,tc |
|
- | |||||
| 115 | B5660901 | Blower Wheel |
|
- | |||||
| 116 | M0202642 | Screw |
|
- | |||||
| 117 | M0272605 | Washer |
|
- | |||||
| 118 | A3185102 | Gasket, Magnetron |
|
- | |||||
| 119 | D7157002 | Magnetron Kit,700w |
|
- | |||||
| 120 | B5679101 | Baffle |
|
- | |||||
| 121 | M0113504 | Clip K |
|
- | |||||
| 122 | B5656001 | Shield Hv K |
|
- | |||||
| 123 | M0281901 | Hex Nut |
|
- | |||||
| 124 | B5655902 | Clip K |
|
- | |||||
| 125 | A3148801 | Capacitor K |
|
- | |||||
| 127 | B5647901 | Cover Cap Box K |
|
- | |||||
| 128 | A3145401 | Bale Strap K |
|
- | |||||
| 129 | A3194801 | Strain Relief |
|
- | |||||
| 130 | B5669001 | Cord, Power |
|
- | |||||
| 131 | B5668807 | Wldmt-back Panel |
|
- | |||||
| 132 | WP487939 | Nut (Replaces: M0282015) |
|
$ 6.95 | |||||
| 133 | WP489464 | Screw (Replaces: M0211217) |
|
Immediately | $ 7.05 | ||||
| 134 | M0110501 | Clip K |
|
- | |||||
| 135 | D7194301 | Transformer |
|
- | |||||
| 136 | 11QBP0235 | Kit, Diode (Replaces: B5685801) |
|
$ 15.33 | |||||
| 137 | M0216517 | Screw |
|
- | |||||
| 138 | M0325301 | Insulator, Term. K |
|
- | |||||
| 140 | M0218116 | Screw |
|
- | |||||
| 141 | M0305202 | Resistor A |
|
- | |||||
| 142 | R0160007 | Capacitor Kit |
|
- | |||||
| 143 | A3197101 | Strap-capacitor A |
|
- | |||||
| 144 | A3178702 | Terminal Block |
|
- | |||||
| 145 | M0229005 | Screw K |
|
- | |||||
| 146 | A3180201 | Insulation Board |
|
- | |||||
| 147 | M0270524 | Washer |
|
- | |||||
| 148 | A3197701 | Washer-u Type |
|
- | |||||
| 149 | M0282005 | Nut K |
|
$ 7.07 | |||||
| 149 | M0202520 | Screw |
|
- | |||||
| 150 | B5717801 | Line Filter Xx |
|
- | |||||
| 154 | M0325501 | Insulator, Pod K |
|
- | |||||
| 155 | M0305009 | Resistor A |
|
- | |||||
| 156 | M0305204 | Resistor |
|
- | |||||
| 157 | M0308102 | Fuse |
|
- | |||||
| 158 | B5687402 | Terminal Board |
|
- | |||||
| 159 | M0321701 | Sleeve |
|
- | |||||
| NI | C3655822 | Jumper Wire |
|
- | |||||
| NI | C3655807 | Jumper Wire |
|
- | |||||
| NI | C3655809 | Jumper Wire |
|
- |
