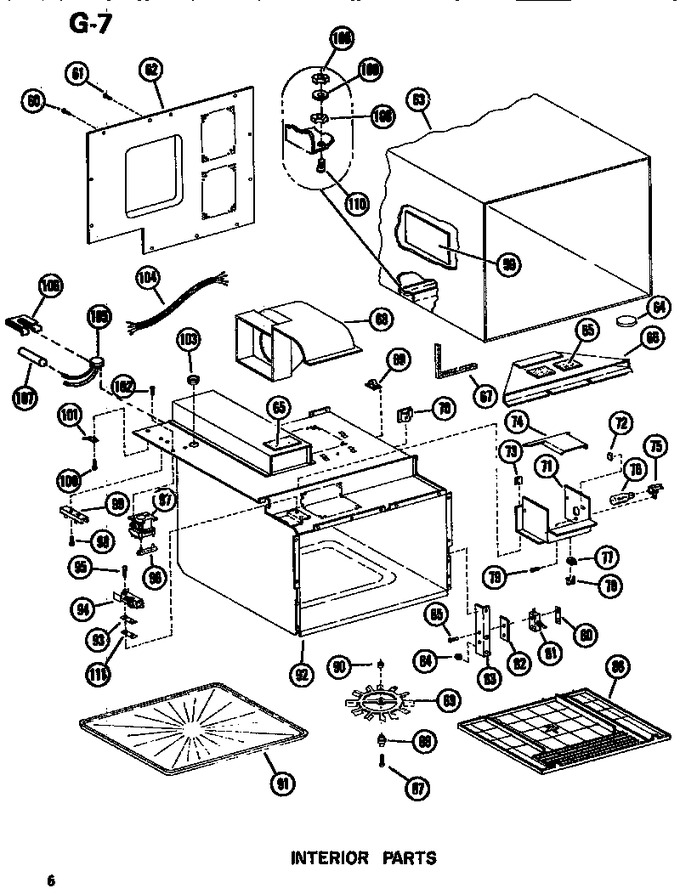

03 - Interior
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 59 | A3205601 | Insulation |
|
- | |||||
| 60 | M0230015 | Screw |
|
- | |||||
| 61 | M0230028 | Screw, No.8-32 X 5/16 Pph (blk) |
|
- | |||||
| 62 | D7104101 | Access Panel |
|
- | |||||
| 63 | D7110608 | Wld-o C Wrapper |
|
- | |||||
| 64 | B5732501 | Foot |
|
- | |||||
| 65 | B5107614 | Gasket |
|
- | |||||
| 66 | C3662201 | Air Baffle Wldmt |
|
- | |||||
| 67 | A3030302 | Gasket |
|
- | |||||
| 68 | D7181101 | Scroll |
|
- | |||||
| 69 | WPM0104106 | Clip,cord (Replaces: M0104101) |
|
$ 7.00 | |||||
| 70 | M0104102 | Clip, Cord |
|
$ 8.10 | |||||
| 71 | C3662601 | Light Shield |
|
- | |||||
| 72 | M0117801 | Clip |
|
- | |||||
| 73 | M0113503 | Clip |
|
- | |||||
| 74 | B5660101 | Barrier |
|
- | |||||
| 75 | B5668501 | Lamp Socket |
|
- | |||||
| 76 | A3167503 | Bulb-250 V |
|
- | |||||
| 77 | B5665801 | Thermal Cutout |
|
- | |||||
| 78 | M0115802 | Clip |
|
- | |||||
| 79 | M0230015 | Screw |
|
- | |||||
| 80 | M0289502 | Speed Nut |
|
- | |||||
| 81 | M0340702 | Switch A |
|
- | |||||
| 82 | A3178601 | Insulator Sheet |
|
- | |||||
| 83 | B5665701 | Bracket |
|
- | |||||
| 84 | M0283401 | Nut, Self Thread |
|
- | |||||
| 85 | M0202521 | Screw |
|
- | |||||
| 86 | D7190902 | Grease Shield |
|
- | |||||
| 87 | M0201903 | Machine Screw |
|
- | |||||
| 88 | B5661601 | Bushing,stirrer |
|
- | |||||
| 89 | D7104401 | Fan, Stirrer |
|
- | |||||
| 90 | A3165901 | Spacer,stirrer |
|
- | |||||
| 91 | D7107702 | Tray, Glass, Oven |
|
- | |||||
| 92 | D7175004 | Oven Wld |
|
- | |||||
| 93 | A3178601 | Insulator Sheet |
|
- | |||||
| 94 | B5666503 | Switch Wld |
|
- | |||||
| 95 | M0202521 | Screw |
|
- | |||||
| 96 | M0305007 | Resistor, Relay A |
|
- | |||||
| 97 | C3656302 | Relay, Power And Surge |
|
- | |||||
| 98 | M0234117 | Screw |
|
- | |||||
| 99 | B5677202 | Terminal Block |
|
- | |||||
| 100 | M0216517 | Screw |
|
- | |||||
| 101 | M0320901 | Terminal |
|
- | |||||
| 102 | WP90767 | Screw (Replaces: M0216529) |
|
Immediately | $ 7.04 | ||||
| 103 | A3196401 | Bushing |
|
- | |||||
| 104 | D7178202 | Wiring Harness |
|
- | |||||
| 105 | M0370403 | Thermal Prot |
|
- | |||||
| 106 | M0115802 | Clip |
|
- | |||||
| 107 | A0304501 | Connector A-k |
|
- | |||||
| 108 | M0282005 | Nut K |
|
$ 7.07 | |||||
| 109 | M0270524 | Washer |
|
- | |||||
| 110 | M0202518 | Screw |
|
- | |||||
| 111 | M0289502 | Speed Nut |
|
- | |||||
| NI | M0275023 | Tape,alum Per Roll |
|
- |
