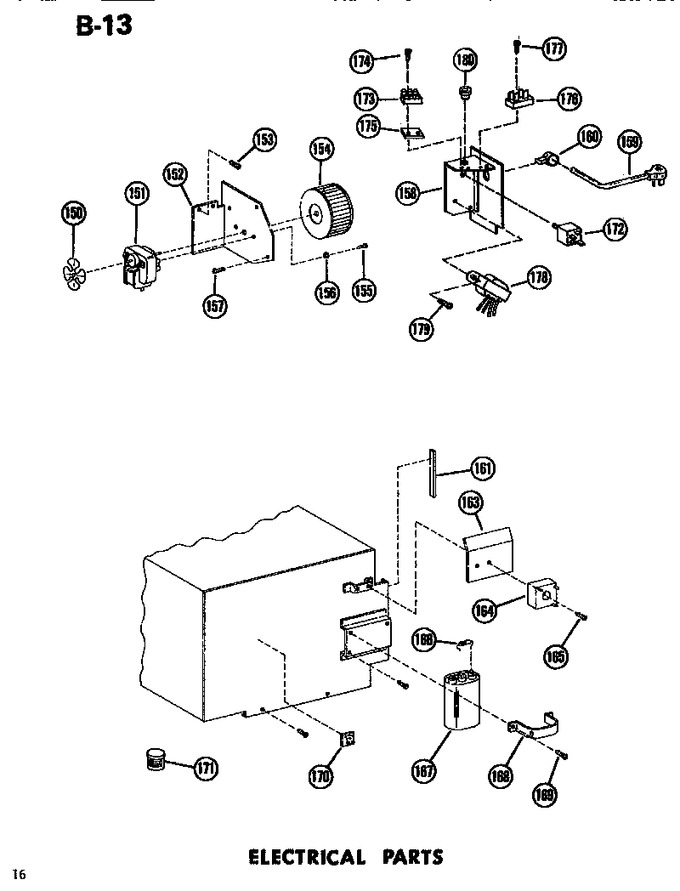

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
150	B5661802		Fan Blade		Appelez-nous	-
151	C3670902		Motor, Blower		Appelez-nous	-
152	B5673801		Bracket		Appelez-nous	-
153	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.04
154	C3670801		Blower Wheel		Appelez-nous	-
155	M0202642		Screw		Appelez-nous	-
156	M0272605		Washer		Appelez-nous	-
157	M0230017		Screw,tc		Appelez-nous	-
158	B5668808		Panel, Serial Plate A Strain R		Appelez-nous	-
159	B5669001		Cord, Power		Appelez-nous	-
160	A3194801		Strain Relief		Appelez-nous	-
161	A3030333		Gasket (1=1ft.)		Appelez-nous	-
163	A3203801		Heatsink-rectifier		Appelez-nous	-
164	B5672401		Rectifier		Appelez-nous	-
165	M0216517		Screw		Appelez-nous	-
166	M0305202		Resistor A		Appelez-nous	-
167	R0160009		Assembly, Capacitor & 2 Resist		Appelez-nous	-
168	A3184702		Bracket		Appelez-nous	-
169	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.04
170	WPM0104106		Clip,cord   (Replaces: M0104101)				$ 7.00
171	A3204901		Thermal Compound K		Appelez-nous	-
172	B5717801		Line Filter Xx		Appelez-nous	-
173	A3178702		Terminal Block		Appelez-nous	-
174	M0229005		Screw K		Appelez-nous	-
175	A3180201		Insulation Board		Appelez-nous	-
176	B5672202		Terminal Block		Appelez-nous	-
177	M0234117		Screw		Appelez-nous	-
178	C3699301		Transformer		Appelez-nous	-
179	M0230015		Screw		Appelez-nous	-
180	A4554806		Snap Bushing		Appelez-nous	-
