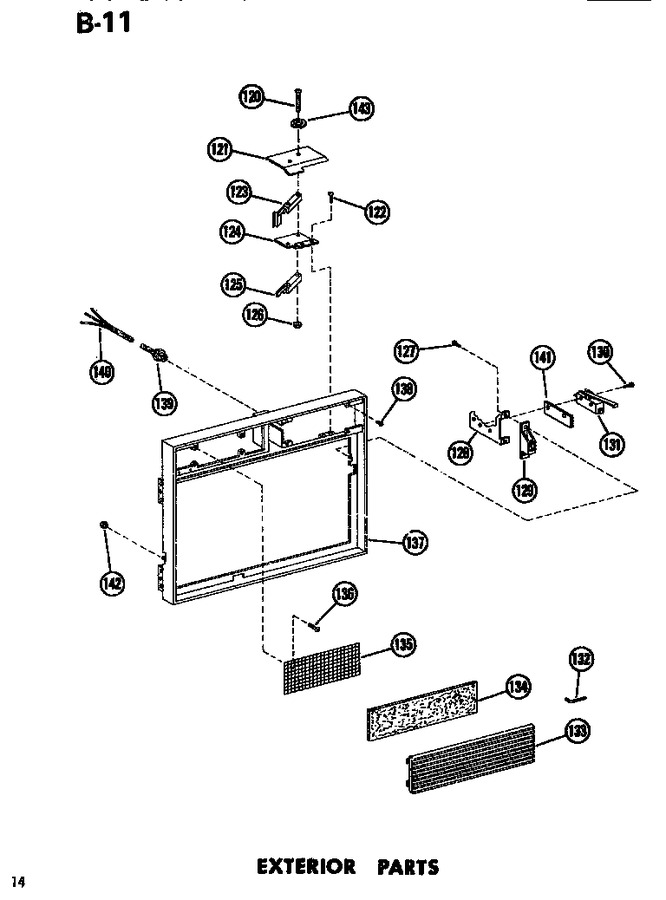

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 120 | M0202523 | Screw |
|
- | |||||
| 121 | B5685601 | Pad Insulation A |
|
- | |||||
| 122 | M0228016 | Screw |
|
- | |||||
| 123 | B5671602 | Switch, Weldment, Upper |
|
- | |||||
| 124 | A3182502 | Bracket-switch |
|
- | |||||
| 125 | C3670007 | Switch, Interlock, Lower |
|
- | |||||
| 126 | M0282005 | Nut K |
|
$ 7.07 | |||||
| 127 | M0230017 | Screw,tc |
|
- | |||||
| 128 | B5675403 | Bracket-latch |
|
- | |||||
| 129 | C3680202 | Strike-latch |
|
- | |||||
| 130 | M0227525 | Screw A-k |
|
- | |||||
| 131 | A3163406 | Switch Preform |
|
- | |||||
| 132 | A4696103 | Wrench-hex |
|
- | |||||
| 133 | C3678401 | Grille, Air Inlet |
|
- | |||||
| 134 | A3094902 | Filter |
|
- | |||||
| 135 | B5672302 | Screen-air Inlet |
|
- | |||||
| 136 | M0228016 | Screw |
|
- | |||||
| 137 | D7133403 | Bezel, Outer Case |
|
- | |||||
| 138 | M0113006 | Clip A |
|
- | |||||
| 139 | R0164012 | Socket Assy |
|
- | |||||
| 140 | D7202701 | Wiring Harness |
|
- | |||||
| 141 | A3178601 | Insulator Sheet |
|
- | |||||
| 142 | M0283401 | Nut, Self Thread |
|
- | |||||
| 143 | M0270524 | Washer |
|
- |
