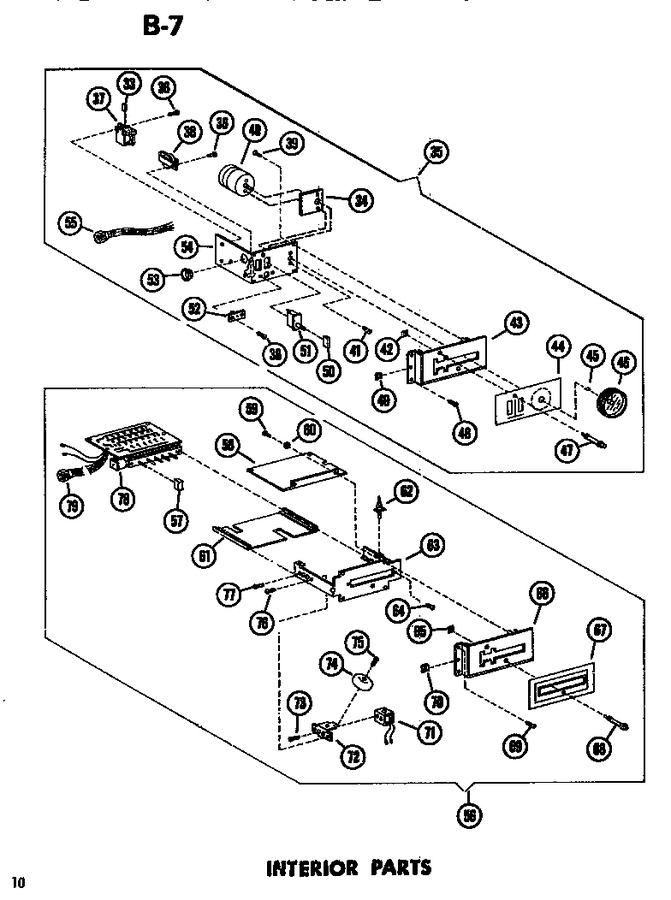

SELECT A DIAGRAM

01 - Electrical


02 - Electrical


03 - Exterior


04 - Exterior


05 - Interior


06 - Interior


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
33	M0325302		Insulator		Appelez-nous	-
34	A3228001		Insulator-dial Tmr		Appelez-nous	-
35	R0157122		Dial Assy Kit		Appelez-nous	-
36	M0230015		Screw		Appelez-nous	-
37	B5674301		Relay K		Appelez-nous	-
38	A3152502		Buzzer A		Appelez-nous	-
39	M0228016		Screw		Appelez-nous	-
40	C3680403		Timer		Appelez-nous	-
41	M0202502		Screw		Appelez-nous	-
42	R0191015		Clip-pilot Light K		Appelez-nous	-
43	C3666201		Escutcheon Timer A		Appelez-nous	-
44	B5674906		Thinplate		Appelez-nous	-
45	M0117001		Clip		Appelez-nous	-
46	D7028701		Knob A		Appelez-nous	-
47	A3184401		Pilot Light A		Appelez-nous	-
48	M0253218		Screw		Appelez-nous	-
49	M0288102		Speed Nut		Appelez-nous	-
50	B5674001		Button Stop A		Appelez-nous	-
50	B5674002		Button Start A		Appelez-nous	-
51	B5674701		Switch		Appelez-nous	-
52	A3186901		Terminal Board A		Appelez-nous	-
53	A4554802		Snap Bushing		Appelez-nous	-
54	C3676801		Bracket-dial Timer		Appelez-nous	-
55	C3680501		Wiring Harness		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
