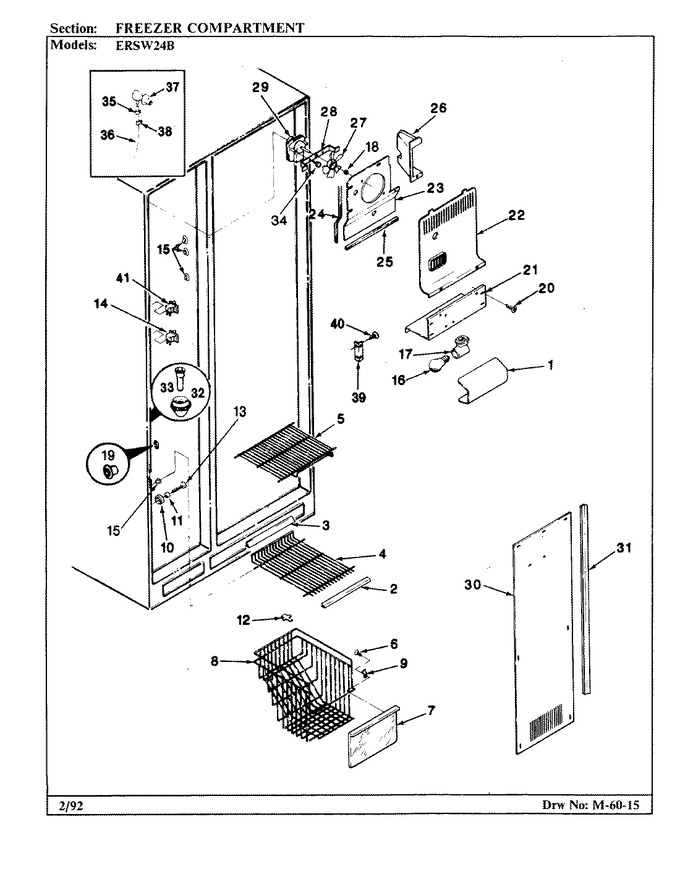

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 67291-1 | Spring, Pin |
|
- | |||||
| 1 | 67292-1 | Shield, Light |
|
- | |||||
| 2 | 67176-12 | Trim, Frz Shelf Front |
|
- | |||||
| 3 | 67177-3 | Trim, Rear |
|
- | |||||
| 4 | 67178-2 | Shelf, Frz. |
|
- | |||||
| 5 | 67179-2 | Shelf, Frz. Dispenser |
|
- | |||||
| 6 | 406008-1 | Screw |
|
- | |||||
| 7 | 67655-5 | Front, Wire Basket |
|
- | |||||
| 8 | 67121-2 | Basket, Frz. |
|
- | |||||
| 9 | 67122-1 | Clip,frz Basket |
|
- | |||||
| 10 | 67123-1 | Roller,wheel Basket |
|
- | |||||
| 11 | 67124-1 | Space Roller |
|
- | |||||
| 12 | 67488-1 | Clip, Basket Stop |
|
- | |||||
| 13 | 65275-19 | Screw |
|
- | |||||
| 14 | W11384469 | Switch, Light (Replaces: 66987-1) |
|
Immediately | $ 33.51 | ||||
| 15 | 67466-1 | Cup, Shelf |
|
- | |||||
| 16 | W11679940 | Bulb, Light (Replaces: 31956-1) |
|
Immediately | $ 10.17 | ||||
| 17 | 60577-1 | Socket, Light |
|
- | |||||
| 18 | 69047-1 | Wire Harness Frz. |
|
- | |||||
| 18 | 420092-900 | Washer, Spring |
|
- | |||||
| 19 | 67685-1 | Retainer |
|
- | |||||
| 20 | 400015-12 | Screw |
|
- | |||||
| 21 | 67295-1 | Bracket, Motor |
|
- | |||||
| 22 | 67225-2 | Shield, Fan |
|
- | |||||
| 23 | 59920-1 | Stud, Mounting Coil Cover |
|
- | |||||
| 23 | 67297-4 | Cover, Coil |
|
- | |||||
| 24 | 66325-15 | Seal, Foam |
|
- | |||||
| 25 | 66325-20 | Seal |
|
$ 8.22 | |||||
| 26 | 67353-1 | Shield, Air Directional |
|
- | |||||
| 27 | 52120-1 | Blade, Fan Frzr. |
|
- | |||||
| 28 | 64856-2 | Bracket, Fan Motor |
|
- | |||||
| 28 | 56142-1 | Nut, Motor Box |
|
- | |||||
| 29 | 55735-8 | Motor,evaporator Fan |
|
- | |||||
| 30 | 67335-3 | Cover, Coil Lower |
|
- | |||||
| 30 | W11772394 | Screw (Replaces: 400021-1) |
|
Immediately | $ 10.94 | ||||
| 30 | 400015-12 | Screw |
|
- | |||||
| 31 | 67562-1 | Coil Cover, Gasket |
|
- | |||||
| 32 | 52526-1 | Grommet |
|
- | |||||
| 33 | 26527-9 | Drain Tube |
|
- | |||||
| 34 | WP488729 | Screw (Replaces: 9986-45) |
|
Immediately | $ 7.01 | ||||
| 35 | WPM0114003 | Clamp, Spring (Replaces: 60333-4) |
|
$ 9.95 | |||||
| 36 | WPB5705307 | Tubing, Valve To Grommet (Replaces: 67579-2) |
|
$ 11.19 | |||||
| 37 | 68307-2 | Grommet, Water Entry |
|
- | |||||
| 38 | WP488366 | Clamp, Feeder Tube (Replaces: 23197-8) |
|
$ 10.06 | |||||
| 39 | 67288-1 | Bracket, Mounting |
|
- | |||||
| 40 | 400026-1 | Screw |
|
- | |||||
| 41 | 68058-1 | Switch, Interlock |
|
- |
