SELECT A DIAGRAM
New Model Search:

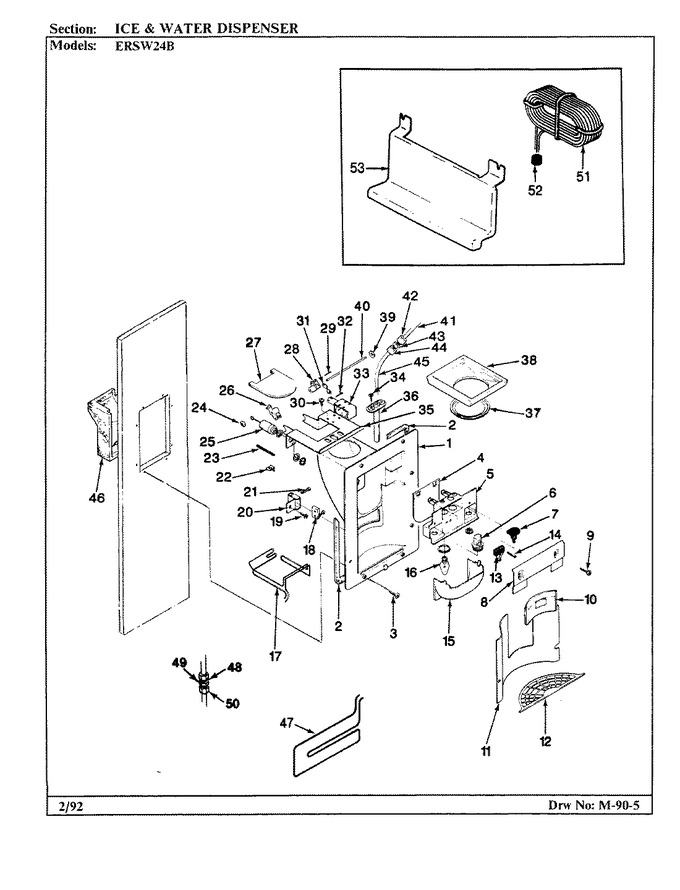

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 67513-1 | Fountain |
|
- | |||||
| 2 | 67510-1 | Seal,fountain |
|
- | |||||
| 3 | 66170-4 | Anchor |
|
- | |||||
| 3 | 400015-12 | Screw |
|
- | |||||
| 4 | 67538-1 | Deflector Ice |
|
- | |||||
| 4 | 440011-103 | Rivet |
|
- | |||||
| 4 | 67540-1 | Weight Deflector----na |
|
- | |||||
| 5 | 405013-1 | Screw |
|
- | |||||
| 5 | 67535-1 | Bracket Switch |
|
- | |||||
| 6 | 67293-1 | Socket, Light (w/nut) |
|
- | |||||
| 7 | 67340-1 | Switch, Push |
|
- | |||||
| 8 | 67285-1 | Cover, Switch Bracket |
|
- | |||||
| 9 | 400015-12 | Screw |
|
- | |||||
| 10 | 67534-3 | Actuator Pad |
|
- | |||||
| 11 | 67511-2 | Liner Fountain |
|
- | |||||
| 12 | 67223-1 | Grill,fountain |
|
- | |||||
| 13 | 67283-1 | Switch, Selector |
|
- | |||||
| 14 | 65275-27 | Screw |
|
- | |||||
| 15 | 67536-1 | Funnel Ice |
|
- | |||||
| 16 | W10857122 | Bulb, Light (Replaces: 63179-1) |
|
$ 12.45 | |||||
| 17 | 67394-1 | Heater,fountain(upper) |
|
- | |||||
| 18 | 72054-206 | Actuator Switch Assembly |
|
- | |||||
| 19 | 400015-12 | Screw |
|
- | |||||
| 20 | 67343-1 | Bracket,actuator |
|
- | |||||
| 21 | 65275-14 | Screw |
|
- | |||||
| 22 | 53732-2 | U-nut Grounding |
|
- | |||||
| 23 | 67339-1 | Spring, Extension |
|
- | |||||
| 24 | 431015-511 | Nut, Push On |
|
- | |||||
| 25 | 67286-1 | Dashpot,time Delay |
|
- | |||||
| 26 | 67337-1 | Arm Dashpot |
|
- | |||||
| 27 | 67800-1 | Door, Ice Chute |
|
- | |||||
| 28 | 67338-1 | Arm Solenoid |
|
- | |||||
| 29 | 67291-2 | Spring, Pin |
|
- | |||||
| 30 | 406012-5 | Screw |
|
- | |||||
| 31 | 67221-1 | Link Ice Door |
|
- | |||||
| 32 | 492001-703 | Cotter Pin |
|
- | |||||
| 33 | 67659-1 | Cover |
|
- | |||||
| 33 | 67543-1 | Solenoid |
|
- | |||||
| 33 | 406032-1 | Screw |
|
- | |||||
| 34 | 405012-103 | Screw |
|
- | |||||
| 35 | 67346-1 | Bracket, Fountain |
|
- | |||||
| 36 | 67537-1 | Spout Fountain |
|
- | |||||
| 36 | 67728-1 | Retainer Tube |
|
- | |||||
| 37 | 67262-1 | Seal, Ice Chute |
|
- | |||||
| 38 | 67249-1 | Chute, Ice Fountain |
|
- | |||||
| 38 | 67589-2 | Insulation, Fountain |
|
- | |||||
| 39 | 431028-511 | Nut, Push-on |
|
- | |||||
| 40 | 67289-3 | Shaft, Ice Door |
|
- | |||||
| 41 | 27116-2 | Wire Nut |
|
- | |||||
| 41 | 67912-1 | Wire Harness Fountain |
|
- | |||||
| 41 | WPW10426709 | Tubing Plastic-ftn/door Panel (Replaces: 67187-2) |
|
$ 126.83 | |||||
| 42 | 55604-1 | Nut, Compression (5/16``) |
|
- | |||||
| 43 | WP4373559 | Union, Reducing (Replaces: 67612-1) |
|
$ 69.62 | |||||
| 44 | WP627018 | Nut, Compression (1/4``) (Replaces: 55419-1) |
|
$ 9.87 | |||||
| 45 | WPB5705307 | Tubing (Replaces: 67579-9) |
|
$ 11.19 | |||||
| 45 | 26088-29 | Vinyl Sleeve |
|
- | |||||
| 46 | 67170-1 | Insulation Fountain |
|
- | |||||
| 47 | 66325-32 | Foam Seal |
|
- | |||||
| 47 | 68941-1 | Heater |
|
- | |||||
| 47 | 68942-1 | Insulation |
|
- | |||||
| 48 | 55604-1 | Nut, Compression (5/16``) |
|
- | |||||
| 49 | 67566-1 | Union Reducing |
|
- | |||||
| 50 | 67610-1 | Nut, Compression (3/8``) |
|
- | |||||
| 51 | 72028-102 | Tubing Assy |
|
- | |||||
| 51 | 400025-6 | Screw |
|
- | |||||
| 52 | 67563-1 | Grommet, Coil Entry |
|
- | |||||
| 53 | 68837-1 | Cover, Water Coil |
|
- |
