SELECT A DIAGRAM

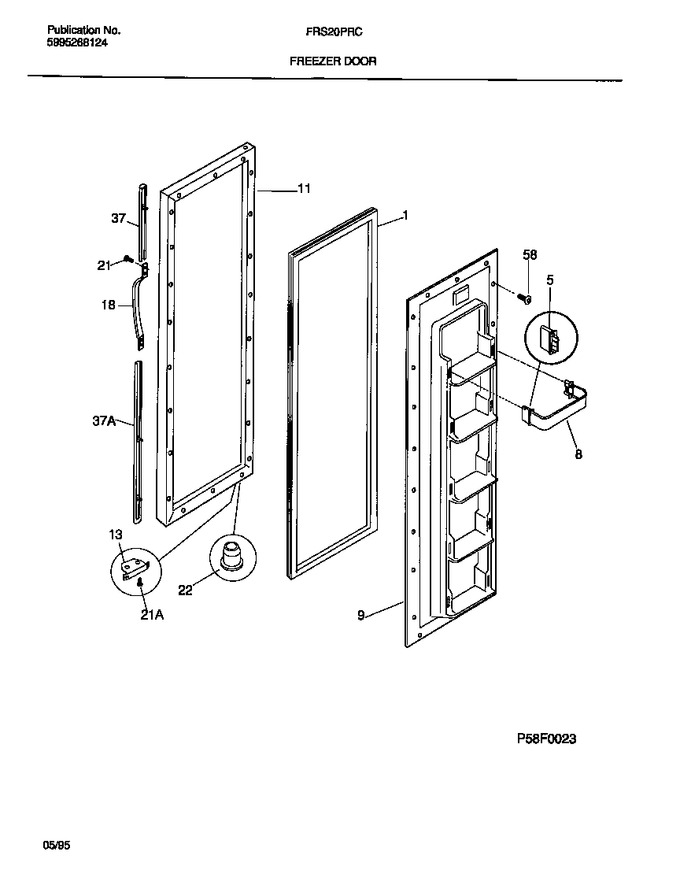

02 - Freezer Door
03 - Refrigerator Door
04 - Cabinet
05 - Shelves
06 - Controls
07 - System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 215734301 | Gasket-frzr Door, Almond Magnetic |
|
- | |||||
| 5 | 5303288950 | Support-door Rack, Rh/lh |
|
$ 51.19 | |||||
| 8 | 215004202 | Rack-door, W/end Caps, (5) |
|
- | |||||
| 9 | 5303288955 | Panel-inner Door, Frzr |
|
- | |||||
| 11 | 218097811 | Panel, Frzr Door, Almond, W/foam Insulatn |
|
- | |||||
| 13 | 5303289522 | Door Stop |
|
$ 40.17 | |||||
| 18 | 215826404 | Handle-door, Almond |
|
- | |||||
| 21 | 218843801 | Screw (Replaces: 5303001001) |
|
$ 14.41 | |||||
| 22 | 5303289320 | Bearing-hinge |
|
$ 19.69 | |||||
| 37 | 215867043 | Trim-handle, 14.12``, Almond, Upper, W/chrome Band, And S |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *58520 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 | |||||
| 21A | 218578600 | Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4 |
|
$ 8.08 | |||||
| 37A | 215867044 | Trim-handle, 29.84``, Almond, Lower, W/chrome Band, And Snap Locks |
|
- |
