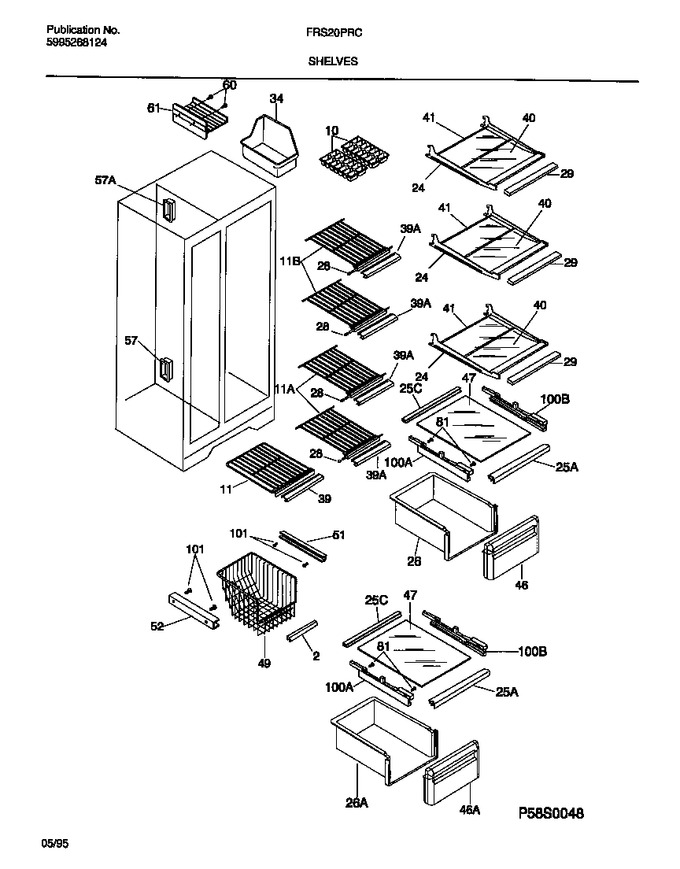

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303288956		Trim-basket		Appelez-nous	-
10	215667501		Tray-ice, Plastic			Immediately	$ 6.07
11	218298005		Shelf, Freezer, Sliding, Wire				$ 137.83
24	215919136		Frame, Refr Shelf, Cantilever, (3)		Appelez-nous	-
26	5303288971		Pan-storage, Upper				$ 171.91
28	08013638		End Cap-shelf, Protector		Appelez-nous	-
29	215919467		Trim-refr Shelf, Front, (3)		Appelez-nous	-
34	5303289069		Container-ice		Appelez-nous	-
39	215217593		Trim-frzr Shelf		Appelez-nous	-
40	218390585		Glass-refr Shelf, Clear, White Graphics, (3)		Appelez-nous	-
41	215919813		Trim-refr Shelf, Rear (3)				$ 36.44
46	5303310092		Front-storage Pan, Upper		Appelez-nous	-
49	5303288957		Basket-sliding		Appelez-nous	-
51	5303288960		Hanger-basket, Rh				$ 70.77
52	215162501		Hanger-basket, Lh, With Spring				$ 96.08
57	5303271653		Ferrule-inner				$ 20.27
60	5304455852		Screw, Hex Washer Head, 8-15a X 1.00   (Replaces: 5303207328)				$ 12.76
61	215781501		Shelf-ice Tray, Wire				$ 136.19
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
101	5304455650		Screw-basket Hanger, Hex Washer Head, 8-18ab X 3/4   (Replaces: 215005000)				$ 14.18
*58526	215339900		Clip, Cantilevr Shlf				$ 5.83
100A	218015501		Support-pan Cover, Lh				$ 37.26
100B	218015601		Support-pan Cover, Rh				$ 55.18
11A	5303288962		Shelf-freezer, Fixed Wire, (2)		Appelez-nous	-
11B	5303288963		Shelf-freezer, Fixed Wire, (2)		Appelez-nous	-
25A	218015301		Trim-storage Pan Cvr, Snap-on, Front				$ 48.25
25C	218015401		Trim-storage Pan Cvr, Snap-on, Rear		Appelez-nous	-
26A	5303288968		Pan-storage, Lower				$ 204.84
39A	215217594		Trim-frzr Shelf, (4)		Appelez-nous	-
46A	5303310466		Front-storage Pan, Lower		Appelez-nous	-
47A	218390586		Insert-pan Cover, Glass, Clear, White Graphics		Appelez-nous	-
47B	215723551		Insert-pan Cover, Glass, Clear				$ 75.72
57A	5303289064		Ferrule-air		Appelez-nous	-
