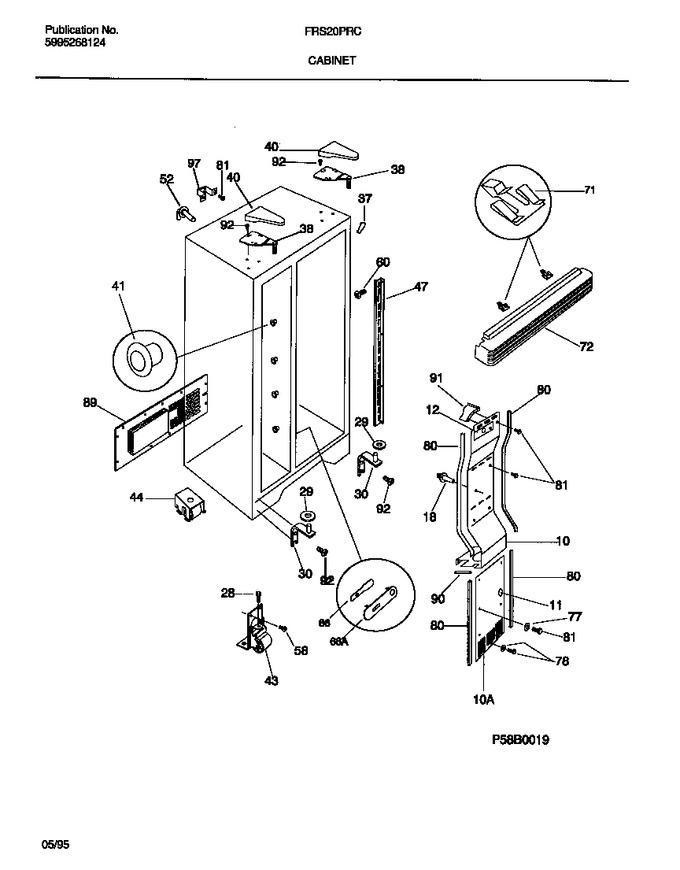

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	5303289038		Cover-air Duct		Appelez-nous	-
11	5303208309		Plug-hole, Factory Test				$ 45.50
12	5303291143		Plug-decorative, I.m. Inlet Tube, & Elec Conn		Appelez-nous	-
28	5303289062		Bolt-roller Adj,hex Head,5/16-24 X 7/8		Appelez-nous	-
37	5303202340		Trim-cabinet Corner, Almond		Appelez-nous	-
38	218215209		Bracket-upper Hinge, W/closer, Almond		Appelez-nous	-
40	5303288946		Cover-upper Hinge, Almond				$ 31.30
44	215163900		Roller Assy, Rear,(2)		Appelez-nous	-
47	5303288974		Channel-shelf Mtg, Side, (2)		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
60	5304455852		Screw, Hex Washer Head, 8-15a X 1.00   (Replaces: 5303207328)				$ 12.76
66	215050201		Damper-meat Keeper		Appelez-nous	-
71	218515401		Clip-grille				$ 17.72
72	218359608		Grille/kickplate, Almond		Appelez-nous	-
77	5303001216		Washer-nylon,3/16 X 5/8 Od		Appelez-nous	-
78	5303274237		Screw-bracket, Hex Washer Head, 8-32(ca) X 1/2		Appelez-nous	-
80	218154003		Gasket-cover		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
89	5303288947		Cover-machine Compt		Appelez-nous	-
90	215022602		Seal-foam		Appelez-nous	-
91	215175300		Deflector-air, Air Duct Cover, W/seal		Appelez-nous	-
92	241710601		Screw   (Replaces: 5303001479)				$ 13.46
97	5303289299		Bracket-im Plug		Appelez-nous	-
*58522	5308009617		Washer, Ext Tooth Lock, No. 10		Appelez-nous	-
*58523	5308016571		Plug-button, Cabinet Liner				$ 4.79
*58524	5303305325		Paint, Touch, Up, Almond		Appelez-nous	-
10A	5303289035		Cover-evap Coil, Lower		Appelez-nous	-
18A	5303289043		Support-air Duct Cvr, 2.55`` Long		Appelez-nous	-
18B	5303289044		Support-air Duct Cvr, 1.83`` Long (not Illustrated)		Appelez-nous	-
29A	215003200		Washer, .40x.63x .16,nylon				$ 54.86
29B	215314300		Washer, .40 X .75 X .06, Nylon		Appelez-nous	-
30A	5303289060		Bracket-lower Hinge, W/hinge Pin		Appelez-nous	-
30B	5303289290		Tapping Plate, Lh (not Illustrated)		Appelez-nous	-
30C	5303289291		Tapping Plate, Rh (not Illustrated)		Appelez-nous	-
41A	5304509705		Grommet, Shelf/rod Mtg, Rh   (Replaces: 5303001609)				$ 10.01
41B	5304500407		Grommet, Shelf Mtg, Lh (not Illustrated)   (Replaces: 5308009759)			Immediately	$ 6.38
43A	5303289059		Roller Assy,front,(2)		Appelez-nous	-
43B	5308017044		Screw-roller Mtg, Spcl Ind Hex Hd, 5/16-18(23) X 7/8 (not Illustrated)				$ 6.34
52A	215454600		Tube-water Inlet				$ 81.11
52B	215058000		Plug-wtr Inlet Tube (not Illustrated)				$ 2.73
66A	218171301		Cover-meat Kpr Dmpr				$ 45.09
