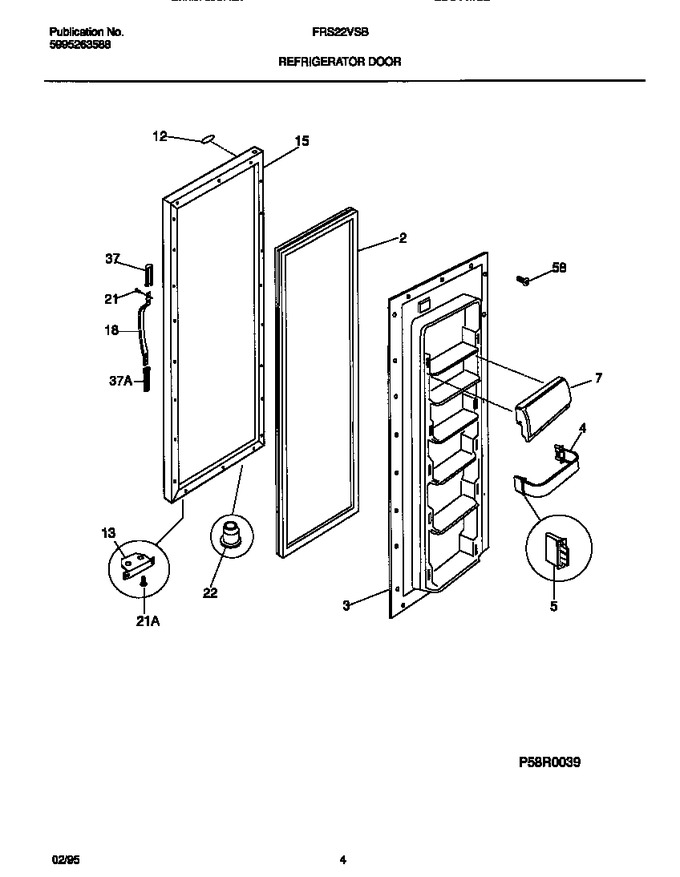

SELECT A DIAGRAM
02 - Freezer Door
03 - Refrigerator Door
04 - Cabinet
05 - Shelves
06 - Controls
07 - System
08 - Ice & Water Dispenser
09 - Ice Container Drive
10 - Ice Maker
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 215734314 | Gasket-refr Door, White, Magnetic |
|
$ 243.34 | |||||
| 3 | 215009801 | Panel-inner Door,refr |
|
- | |||||
| 4 | 215120400 | Rack-door, W/end Caps |
|
$ 113.56 | |||||
| 5 | 5303288950 | Support-door Rack, Rh/lh |
|
$ 51.19 | |||||
| 7 | 5303304563 | Door-dairy |
|
- | |||||
| 12 | 215008601 | Nameplate Assy, White |
|
- | |||||
| 13 | 5303289522 | Door Stop |
|
$ 40.17 | |||||
| 15 | 5303917546 | Panel-refr Door, White, W/foam Insulatn |
|
- | |||||
| 18 | 215826401 | Handle-door ,white |
|
$ 192.78 | |||||
| 21 | 218843801 | Screw (Replaces: 5303001001) |
|
$ 14.41 | |||||
| 22 | 5303289320 | Bearing-hinge |
|
$ 19.69 | |||||
| 37 | 215870604 | Trim-handle,white,upper,w/chrome Band |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *56242 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 | |||||
| 21A | 215218600 | Screw-door Stop Mtg,torx Flat Head 10-16 X 3/4 |
|
- | |||||
| 37A | 215870601 | Trim-handle,white,lower,w/chrome Band |
|
- |
