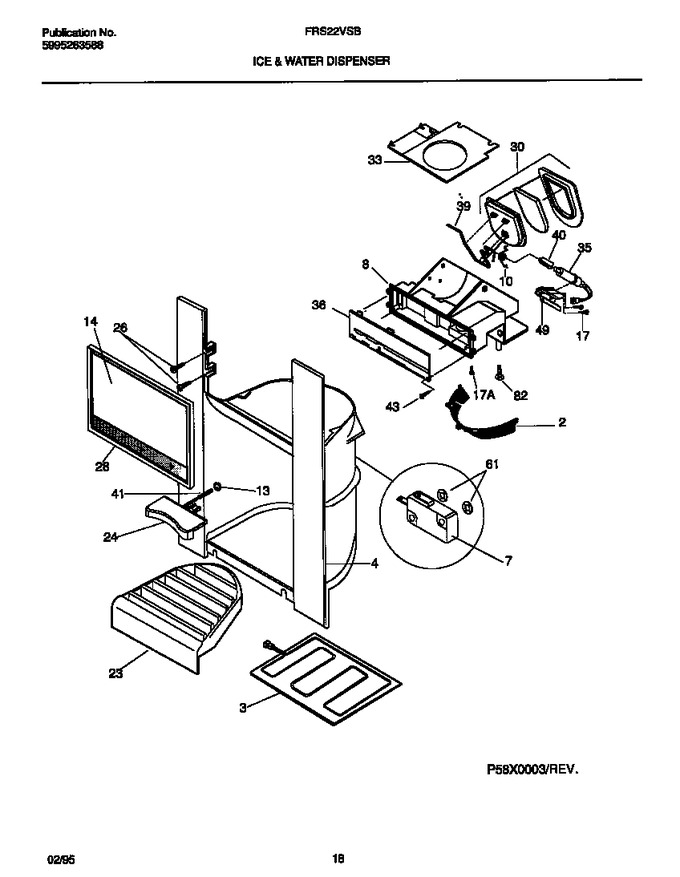

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	215732101		Deflector-ice Disp,white		Appelez-nous	-
3	215484300		Heater-door Housing				$ 40.85
4	5303298524		Housing-dispenser,white		Appelez-nous	-
7	215944300		Shield-micro Switch (not Illustrated)				$ 58.85
7	218284800		Switch-actuator,micro		Appelez-nous	-
8	215968500		Module-dispenser		Appelez-nous	-
10	218209800		Spring,dispenser Door		Appelez-nous	-
13	215748101		Ring-snap,actuator				$ 50.09
14	218047301		Label-module Cover, White		Appelez-nous	-
17	215794400		Screw,6 X 1/4		Appelez-nous	-
23	5303297844		Drip Tray,white				$ 50.03
24	215766301		Actuator,white		Appelez-nous	-
26	215503203		Screw, Cr Pan Head, 10, 16 X 1/2, Special/hi, Lo   (Replaces: 215503200)			Immediately	$ 7.09
28	5303297846		Cover-module,white		Appelez-nous	-
30	215753600		Door Assy-ice,w/gasket,insul		Appelez-nous	-
33	218379901		Heater-disp Throat				$ 24.43
35	218284700		Heat Motor,115v		Appelez-nous	-
36	215254400		Cover-selector Sw		Appelez-nous	-
39	218284600		Wire-ice Door		Appelez-nous	-
40	218284500		Yoke-heat Motor				$ 35.01
41	215765400		Spring-actuator				$ 78.96
43	215760300		Screw,4 X 3/8				$ 9.35
49	215794000		Bracket-heat Motor				$ 34.81
61	215766000		Ring-retainer,micro Switch				$ 34.40
82	215296300		Screw,plask H/l,6 X 3/8		Appelez-nous	-
*56249	215968601		Harness-wiring,disp		Appelez-nous	-
17A	215923400		Washer-flat (not Illustrated)		Appelez-nous	-
17A	215840700		Screw,truss Head,6-20 X 3/8		Appelez-nous	-
