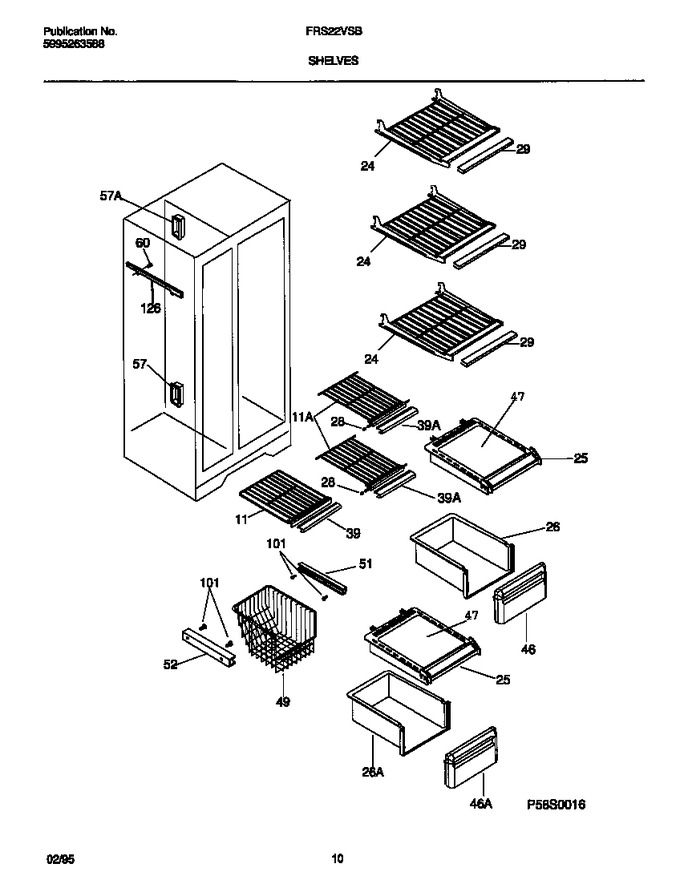

SELECT A DIAGRAM

02 - Freezer Door


03 - Refrigerator Door


04 - Cabinet


05 - Shelves


06 - Controls


07 - System


08 - Ice & Water Dispenser


09 - Ice Container Drive


10 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	218298001		Shelf, Freezer, Sliding, Wire		Appelez-nous	-
24	5303296674		Shelf-cantilever,refr,(3)		Appelez-nous	-
25	5303289586		Trim-storage Pan Cvr (not Illustrated)		Appelez-nous	-
25	218147701		Cover-storage Pan,upper & Lower				$ 123.56
26	5303289500		Pan-storage,upper				$ 174.74
28	08013638		Cap-protector		Appelez-nous	-
29	215217559		Trim-refr Shelf,(3)		Appelez-nous	-
39	215217543		Trim-frzr Shelf		Appelez-nous	-
46	5303300432		Front-storage Pan,upper		Appelez-nous	-
47	215530500		Insert-pan Cover,plastic,white		Appelez-nous	-
47	5303289387		Insert-pan Cover,glass,clear		Appelez-nous	-
49	5303289521		Basket-sliding				$ 239.40
51	5303288960		Hanger-basket, Rh				$ 70.77
52	215162501		Hanger-basket, Lh, With Spring				$ 96.08
57	5303271653		Ferrule-inner				$ 20.27
60	5304455852		Screw, Hex Washer Head, 8-15(a) X 1   (Replaces: 5303207328)				$ 12.76
101	5304455650		Screw-basket Hanger, Hex Washer Head, 8ab X 3/4   (Replaces: 215005000)				$ 14.18
126	218232700		Rail-auger Bucket, Rh (not Illustrated)				$ 44.05
126	215205400		Rail-auger Bucket,lh				$ 64.00
*56246	215339900		Clip, Cantilevr Shlf				$ 5.83
11A	5303289504		Shelf-freezer, Fixed Wire, (2)		Appelez-nous	-
26A	5303289501		Pan-storage,lower				$ 164.85
39A	215217558		Trim-frzr Shelf		Appelez-nous	-
46A	5303300431		Front-storage Pan, Lower		Appelez-nous	-
57A	5303289064		Ferrule-air		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
