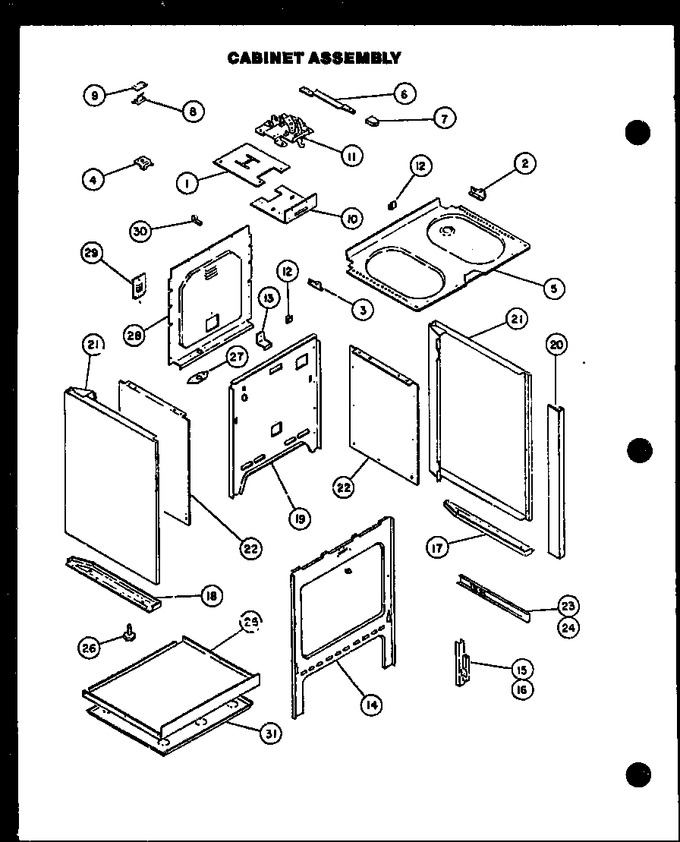

01 - Cabinet Assy


02 - Control Panel Parts


03 - Lower Oven Door Parts


04 - Page 1


05 - Storage Drawer Parts


06 - Upper Oven Door Parts


07 - Upper Oven Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0063353		Retainer, Oven Light		Appelez-nous	-
2	Y0091519		Bracket		Appelez-nous	-
3	Y0091520		Bracket		Appelez-nous	-
4	Y0302316		Bracket, Switch		Appelez-nous	-
5	301003E		Drip Baffle		Appelez-nous	-
6	303039B		Latch Arm		Appelez-nous	-
7	0302300		Knob, Latch Handle (blk)		Appelez-nous	-
8	Y0065780		Switch, Clean Circuit				$ 11.77
9	Y0091523		Insulation, Esm		Appelez-nous	-
10	Y0058918		Bracket, Latch Mtg.		Appelez-nous	-
11	Y0059565		Latch, Ov. Door		Appelez-nous	-
12	Y0091587		Cable, Clip Esm		Appelez-nous	-
13	0061384		Bracket, Switch Mtg.		Appelez-nous	-
14	Y00000000		See Note Front Frame -- (not Field Replaceable		Appelez-nous	-
15	Y0067795		Kit, Door Hinge(rh-ss)		Appelez-nous	-
16	Y0066953		Kit, Door Hinge(lh-hs)		Appelez-nous	-
17	Y0058991		Brace, Leveling Leg (lt)		Appelez-nous	-
18	Y0058992		Brace, Leveling Leg (lt)		Appelez-nous	-
19	Y0303364		Insulation Retainer Rear		Appelez-nous	-
20	Y0301639		Trim, Side Panel, Lh		Appelez-nous	-
21	302710L		Panel, Side (alm)		Appelez-nous	-
21	302710W		Panel, Side (wht)		Appelez-nous	-
22	Y0303572		Side Insulation Retainer		Appelez-nous	-
23	0300475		Track, Storage Drawer-r.h.		Appelez-nous	-
24	Y0300474		Track, Storage Drawer-l.h.		Appelez-nous	-
25	Y0303838		Bottom Insulation Retainer		Appelez-nous	-
26	Y0300585		Leg, Leveling		Appelez-nous	-
27	0058311		Plate, Main Inlet Wire		Appelez-nous	-
28	Y0058434		Cover, Rear		Appelez-nous	-
29	Y0058435		Access Plate, Rear		Appelez-nous	-
30	Y0068513		Clamp, Wire-insulate		Appelez-nous	-
31	Y0063706		Shield, Heat		Appelez-nous	-
NI	Y0041769		Screw 6 32x5/16 Ph Fh		Appelez-nous	-
NI	Y0078780		Screw Latch Arm Mounting		Appelez-nous	-
NI	Y0092365		Screw 4-40x1		Appelez-nous	-
NI	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: Y0059445)			Immediately	$ 12.65
NI	0059798		Plug Button		Appelez-nous	-
NI	Y0065664		Screw, Tt 23 4-40 X 5/8		Appelez-nous	-
