SELECT A DIAGRAM

01 - Cabinet Assy


02 - Control Panel Parts


03 - Lower Oven Door Parts


04 - Page 1


05 - Storage Drawer Parts


06 - Upper Oven Door Parts


07 - Upper Oven Parts

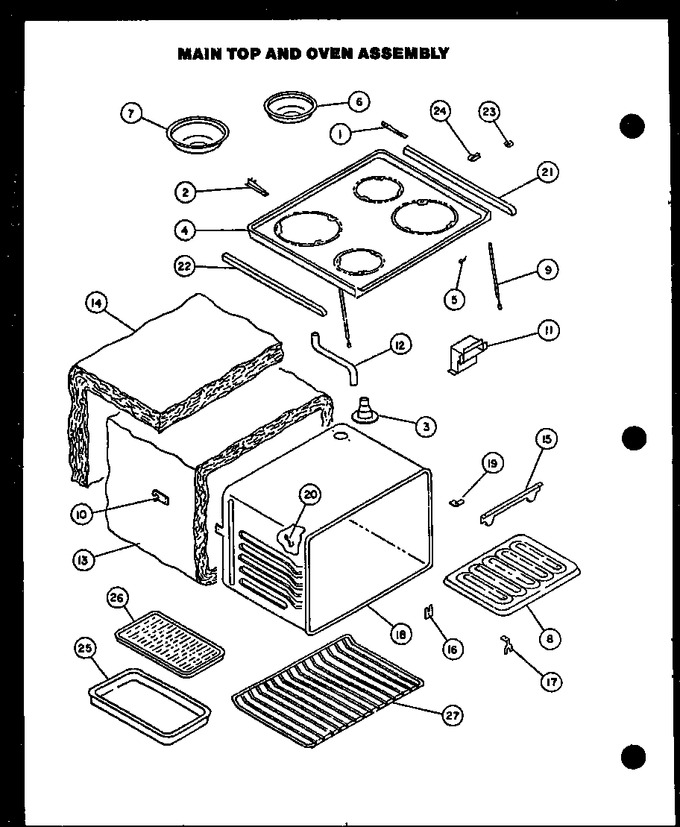

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0091517		Bracket Assembly		Appelez-nous	-
1	WPY0061732		Element, Broil (240v-3000w)   (Replaces: Y0061732)				$ 158.37
2	WP77001094		Element, Bake (240v-2500w)   (Replaces: Y0059552)			Immediately	$ 39.58
2	0091518		Bracket Assembly		Appelez-nous	-
3	WP74011278		Assy, Oven Light   (Replaces: Y0302472)				$ 101.56
3	Y0058526		Smoke Eliminator		Appelez-nous	-
4	Y0042175		Bulb, Light		Appelez-nous	-
4	0059465		Main Top - Almond		Appelez-nous	-
5	0071668		Pin, Support Rod		Appelez-nous	-
5	WP74011278		Assy, Oven Light   (Replaces: Y0302471)				$ 101.56
6	304980B		Burner Pan 6`` Black		Appelez-nous	-
6	Y0304978		Burner Bowl Ring 6`` Chrome		Appelez-nous	-
6	Y0061389		Infinite Switch		Appelez-nous	-
7	Y0304979		Bowl, Burner 8`` (chrome)		Appelez-nous	-
7	X091669		Pkg 36 Relay		Appelez-nous	-
7	304981B		Burner Pan 8`` Black		Appelez-nous	-
8	Y0061781		Reflector, Broil Element		Appelez-nous	-
8	Y0065780		Switch, Clean Circuit				$ 11.77
9	Y0071869		Ballast		Appelez-nous	-
9	Y0091542		Support, Maintop		Appelez-nous	-
10	0042185		Term Blk 1m-min		Appelez-nous	-
10	Y0058852		Bracket, Oven Cavity		Appelez-nous	-
11	Y0302765		Mounting Brkt. Plug Block		Appelez-nous	-
11	301288E		Flue Box		Appelez-nous	-
12	330031		Sub 89336 Term Block Kit   (Replaces: Y0071930)			Immediately	$ 14.48
12	0300024		Tube, Vent		Appelez-nous	-
13	0300973		Insulation, Wrapper		Appelez-nous	-
13	WPW10259868		Element, 4 Turn 1500w 6``   (Replaces: Y0051576)			Immediately	$ 112.28
14	Y0300974		Insulation, Rear		Appelez-nous	-
14	WPW10259865		Element, 5 Turn 2600w 8``   (Replaces: Y0304871)			Immediately	$ 105.92
15	0060600		Element Assy; Sm W/black X		Appelez-nous	-
15	Y0061557		Bracket, Reflector Mounting		Appelez-nous	-
16	Y0060606		Element, Solid Disc, 8``		Appelez-nous	-
16	Y0063351		Capillary Hole Cover		Appelez-nous	-
17	0061556		Bracket, Mounting		Appelez-nous	-
17	Y0071924		Light Socket		Appelez-nous	-
18	WP95292		Lamp, Fluorescent   (Replaces: Y0071927)			Immediately	$ 121.45
18	W10124600		Oven Shell		Appelez-nous	-
19	0300278		Chip Cover		Appelez-nous	-
19	Y0071265		Bracket, Socket, Fl. Lite		Appelez-nous	-
20	Y0091546		Support		Appelez-nous	-
20	0071964		Socket, Starter		Appelez-nous	-
21	0071920		Starter, Flourescent		Appelez-nous	-
21	Y0302979		Trim, Main Top, Rh, Electric		Appelez-nous	-
22	Y0063997		Switch, Rocker		Appelez-nous	-
22	0302978		Trim, Main Top, Lh, Electric		Appelez-nous	-
23	Y0302803		Clock-electronic		Appelez-nous	-
23	Y0096604		Nut, Type ``u``		Appelez-nous	-
24	Y0304679		Set Button Knob		Appelez-nous	-
24	0071203		Wire Clamp		Appelez-nous	-
25	0304737		Shaft Bit Generator		Appelez-nous	-
25	Y0011161		Sub 11161cg, Broiler Pan		Appelez-nous	-
26	4396923		Grid, Broiler (cg)   (Replaces: 304451E)			Immediately	$ 52.04
26	Y0042633		Knob, Clock W/o Spring		Appelez-nous	-
27	WP314763J		Rack,oven   (Replaces: Y0067810)				$ 70.11
27	Y0071200		Oven Heat Control		Appelez-nous	-
28	Y0071946		Thermostat		Appelez-nous	-
29	0071745		Switch, Infinite		Appelez-nous	-
30	Y0071820		Indicator Light		Appelez-nous	-
31	0303686		Knob T-stat Upper		Appelez-nous	-
32	Y0303685		Knob T-stat Lower		Appelez-nous	-
33	0304355		Knob Top Element		Appelez-nous	-
34	Y0064288		Bake Element, Upper Oven				$ 42.20
35	Y0069057		Broil Element, Upper Oven		Appelez-nous	-
36	0073027		Receptacle		Appelez-nous	-
37	Y0060713		Hi Limit Switch		Appelez-nous	-
38	0073028		Sub 90264,kit Light Socket		Appelez-nous	-
39	Y0059797		Light, Indicator, 240v		Appelez-nous	-
NI	Y0076357		Rivet, Pop		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
