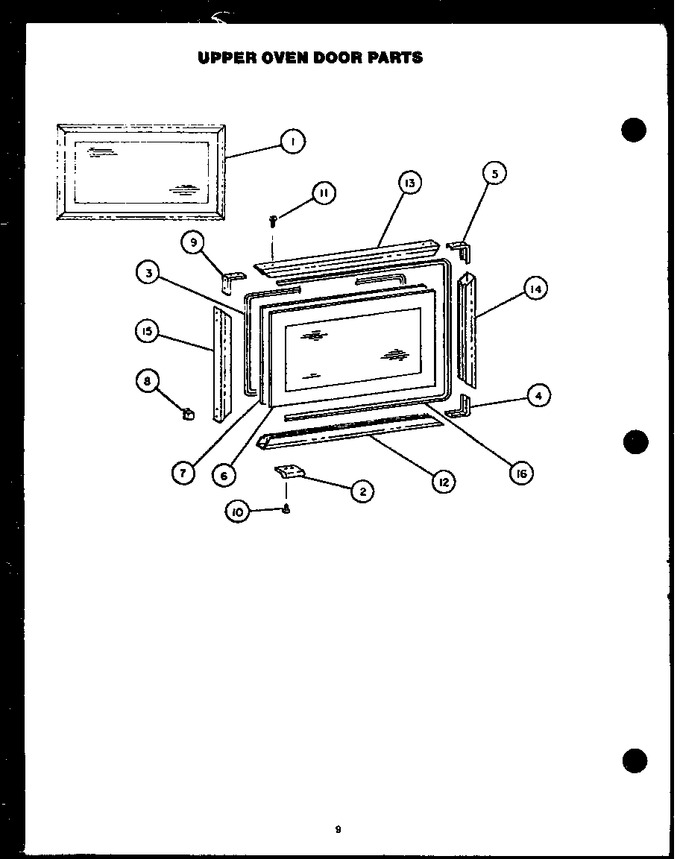

06 - Upper Oven Door Parts
07 - Upper Oven Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 303691D | Door Assy, Upper Oven |
|
- | |||||
| 2 | Y0304036 | Handle Upper Oven Door |
|
- | |||||
| 3 | 0072994 | Door Gasket |
|
- | |||||
| 4 | 0094239 | Corner Support Lower, R.h. |
|
- | |||||
| 5 | Y0094240 | Corner Support Upper, R.h. |
|
- | |||||
| 6 | 0303692 | Window Oven Door |
|
- | |||||
| 7 | Y0094364 | Inner Glass Pane-upper Door |
|
- | |||||
| 8 | Y0078035 | Catch, Upper Oven Door |
|
- | |||||
| 9 | 0094335 | Corner Support, L.h. |
|
- | |||||
| 10 | 0098193 | Screw 10-24x1/2 Ph Tr |
|
- | |||||
| 11 | 0304610 | Screw, Extru. |
|
- | |||||
| 12 | 0304034 | Extrusion Door Frame Bottom |
|
- | |||||
| 13 | 0304033 | Extrusion Door Frame Top |
|
- | |||||
| 14 | 0304032 | Extrusion Door Frame Rh |
|
- | |||||
| 15 | 0304031 | Extrusion Door Frame Lh |
|
- | |||||
| 16 | 0079598 | Gasket 11.33` Lg |
|
- |
