01 - Cabinet Parts

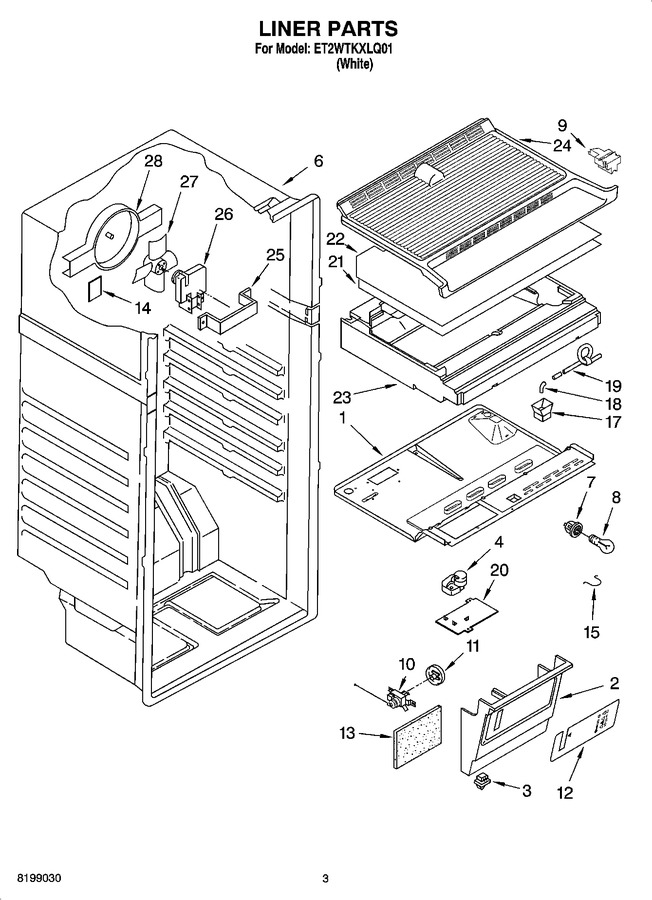

02 - Liner Parts
03 - Unit Parts
04 - Door Parts
05 - Shelf Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8210214 | Bottom, Compartment Separator |
|
- | |||||
| 2 | 4390536 | Box, Control |
|
- | |||||
| 3 | W11384469 | Switch, Rocker Arm (Replaces: 4390513) |
|
Immediately | $ 33.51 | ||||
| 4 | 4390515 | Timer, Defrost |
|
$ 98.81 | |||||
| 7 | 4390644 | Socket, Light |
|
- | |||||
| 8 | W11679940 | Bulb, Light (Replaces: 4390465) |
|
Immediately | $ 10.17 | ||||
| 9 | 4390457 | Plug, Evaporator |
|
- | |||||
| 10 | 4390730 | Thermostat |
|
- | |||||
| 11 | 4390480 | Knob, Thermostat |
|
$ 10.13 | |||||
| 12 | 4390476 | Insert |
|
- | |||||
| 13 | 4390477 | Insulation |
|
- | |||||
| 14 | 1-60123-001 | Cover, Icemaker Hole (Replaces: 4390649) |
|
$ 68.65 | |||||
| 15 | 4390481 | Clip |
|
- | |||||
| 17 | 4390483 | Drain Cup |
|
- | |||||
| 18 | 4390484 | Elbow, Drain |
|
- | |||||
| 19 | 4390537 | Drain Tube |
|
- | |||||
| 20 | 4390514 | Plate, Defrost Timer |
|
- | |||||
| 21 | 4390556 | Shield, Heater (aluminum) |
|
- | |||||
| 22 | 4390517 | Cover, Evaporator Housing |
|
- | |||||
| 23 | 4390722 | Insulation, Compartment |
|
- | |||||
| 24 | 4390720 | Separator, Compartment (top) |
|
- | |||||
| 25 | 4390452 | Bracket, Motor |
|
- | |||||
| 26 | UEFM | Motor, Fan (Replaces: 4390451) |
|
Immediately | $ 95.38 | ||||
| 27 | 4390518 | Blade, Fan |
|
$ 8.61 | |||||
| 28 | 4390519 | Scroll, Fan |
|
- |
