01 - Cabinet Parts


02 - Liner Parts


03 - Unit Parts


04 - Door Parts


05 - Shelf Parts, Optional Parts (not Included)

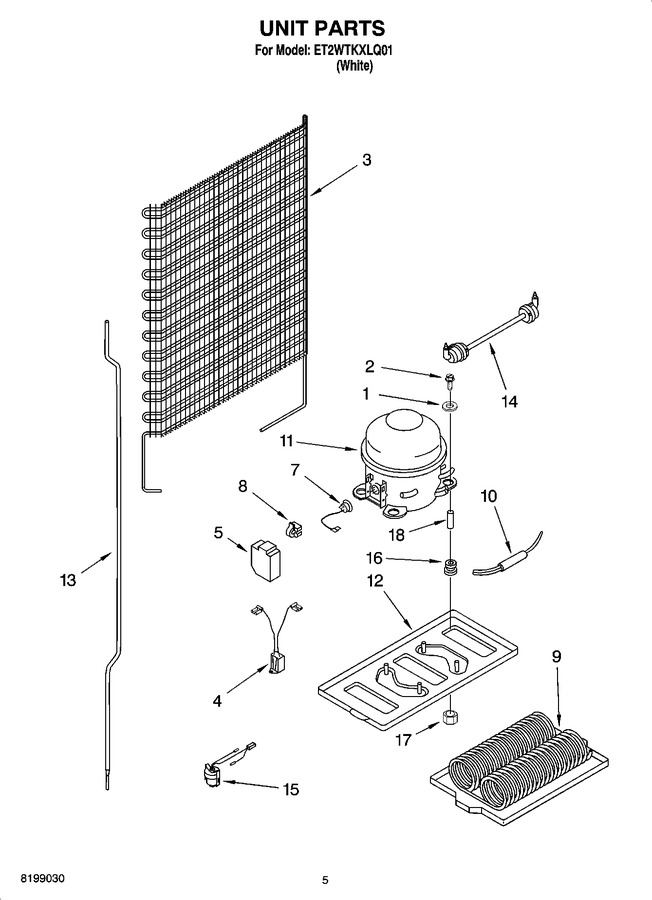

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4356847		Washer		Appelez-nous	-
2	8210220		Bolt 5/16/ X 18		Appelez-nous	-
3	4390647		Condenser		Appelez-nous	-
4	WPW10662129		Capacitor   (Replaces: 4356601)			Immediately	$ 52.97
5	4356777		Cover		Appelez-nous	-
7	WP2214067		Overload   (Replaces: 4390624)				$ 118.49
8	4356738		Relay				$ 53.17
9	4390936		Evaporator				$ 48.83
10	4001		Drier   (Replaces: 4357299)			Immediately	$ 9.64
11	W10309989		Compressor (includes Items 5,7,8,10,& 16)   (Replaces: 4390734)			Immediately	$ 591.26
12	8210219		Unit Mounting Plate		Appelez-nous	-
13	4390721		Exchanger, Heat		Appelez-nous	-
14	4390940		Heater, Defrost		Appelez-nous	-
15	8210213		Bi-metal, Defrost				$ 65.70
16	4356335		Grommet		Appelez-nous	-
17	4390590		Nut		Appelez-nous	-
18	4356846		Compressor Grommet Sleeve				$ 12.86

    View Diagram in Separate Window       Print Part List
