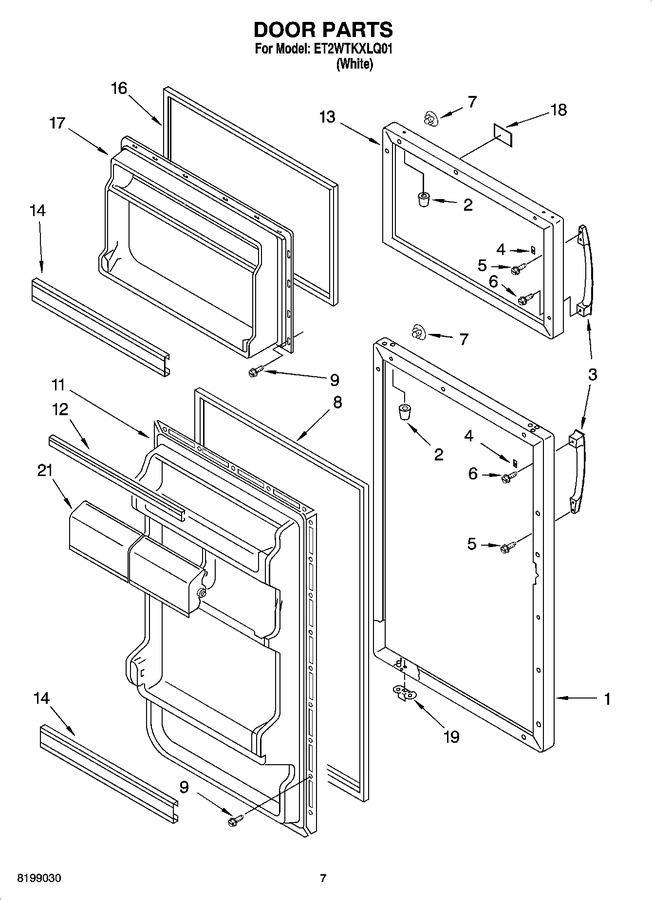

04 - Door Parts
05 - Shelf Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4390837 | Refrigerator Door Panel (white) |
|
- | |||||
| 2 | 4390731 | Cap, Hinge Sleeve (white) |
|
$ 19.69 | |||||
| 3 | 4390575 | Handle Kit (white) |
|
- | |||||
| 4 | 4356306 | Anchor, Screw |
|
$ 7.36 | |||||
| 5 | WP3-24004-109 | Screw (Replaces: 4390510) |
|
$ 7.25 | |||||
| 6 | W10709795 | Screw (Replaces: 4390511) |
|
$ 11.82 | |||||
| 7 | WP2189000 | Hole Plug (white) (Replaces: 4390596) |
|
Immediately | $ 6.66 | ||||
| 8 | 4390727 | Door Gasket, Magnetic |
|
$ 151.53 | |||||
| 9 | 4390598 | Screw |
|
$ 18.89 | |||||
| 11 | 4390726 | Interior Door Panel (refrigerator) |
|
$ 266.78 | |||||
| 12 | 8210216 | Trim, Door Shelf |
|
- | |||||
| 13 | 8210216 | Freezer Door Panel (white) |
|
- | |||||
| 14 | 8210215 | Trim, Door Shelf |
|
- | |||||
| 16 | 4390724 | Door Gasket, Magnetic |
|
$ 30.89 | |||||
| 17 | 4390725 | Interior Door Panel (freezer) |
|
- | |||||
| 18 | 4390656 | Nameplate (white) |
|
- | |||||
| 19 | 4390738 | Bracket, Door Stop |
|
- | |||||
| 21 | 4390949 | Compartment Door |
|
- |
