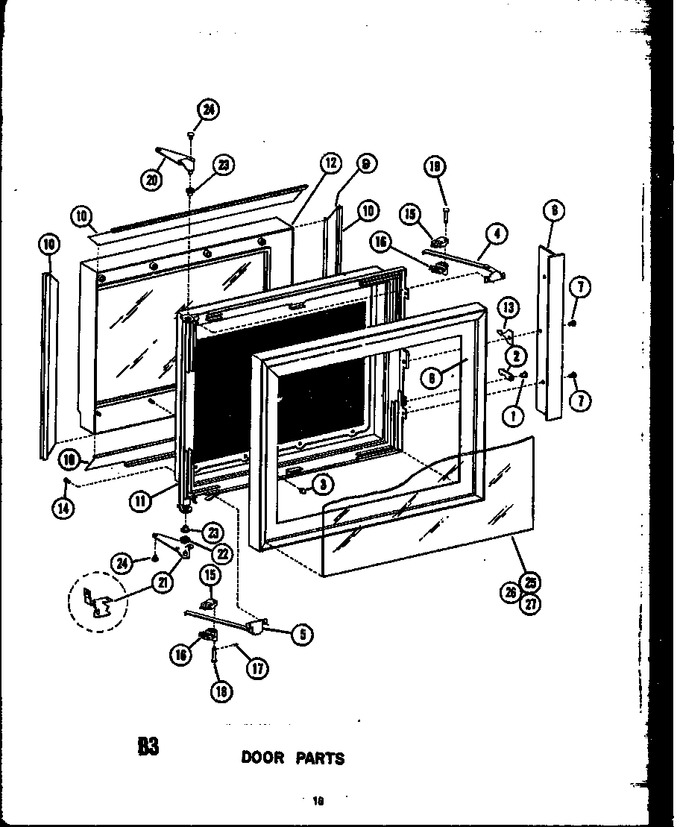

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0091818		Rivet, Latch		Appelez-nous	-
2	Y0091819		Latch, Door		Appelez-nous	-
3	0090361		Use M0285401		Appelez-nous	-
4	Y0089816		Door Stop, Top		Appelez-nous	-
5	0091821		Use B5724401		Appelez-nous	-
6	0089817		Use R0157217		Appelez-nous	-
7	Y0091823		Screw		Appelez-nous	-
8	Y91824		Handle, Door		Appelez-nous	-
9	Y0090365		Tape Per Roll		Appelez-nous	-
10	0091825		Use D7211601q		Appelez-nous	-
11	91826		Inner Door		Appelez-nous	-
12	0091827		Inner Door Mold Assy		Appelez-nous	-
13	Y91828		Door Latch		Appelez-nous	-
14	Y0091829		Screw		Appelez-nous	-
15	0091830		Use C3696902		Appelez-nous	-
16	0091831		Use C3696903		Appelez-nous	-
17	0090334		Use A3171501		Appelez-nous	-
18	Y0091832		Pin-door Stop		Appelez-nous	-
19	Y0091833		Pin-door Stop		Appelez-nous	-
20	0089961		Use C8763702		Appelez-nous	-
21	Y89818		Hinge, Bottom		Appelez-nous	-
22	0090374		Washer Non-metal K		Appelez-nous	-
23	0091836		Use B5721701		Appelez-nous	-
24	91837		Screw		Appelez-nous	-
25	91838		Window, Outer		Appelez-nous	-
26	Y0091839		Gasket-per Ft		Appelez-nous	-
27	Y0091840		Gasket		Appelez-nous	-
