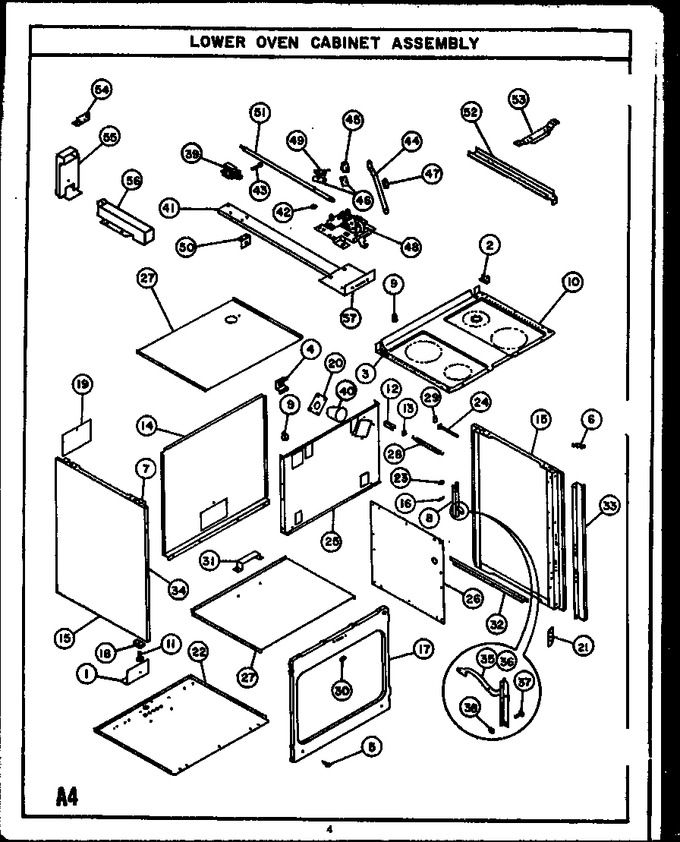

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 Y0091539 Angle, Terminal Block Appelez-nous -
4 79397 Housing Oven Light Appelez-nous -
5 Y91571 Bumper, Drawer Appelez-nous -
6 0091473 Used In 0091231 Appelez-nous -
7 0091474 Sub 91231 Cap Trim Kit Appelez-nous -
8 0091547 Channel Assembly Appelez-nous -
9 Y0091587 Cable, Clip Esm Appelez-nous -
11 76205 Leveling Leg Appelez-nous -
12 Y91526 Link Oven Door Spring Appelez-nous -
13 Y71877 Nut, Square Appelez-nous -
14 91340 Panel, Lower Rear Appelez-nous -
15 71080W Main End (before Sn 3690698) ( Appelez-nous -
15 71080D Main End (before Sn 3690698) ( Appelez-nous -
15 71080N Main End (before Sn 3690698) ( Appelez-nous -
15 71080C Main End (before Sn 3690698) ( Appelez-nous -
15 71080V Main End (before Sn 3690698) ( Appelez-nous -
16 0091606 Pin Appelez-nous -
17 71000 Front Frame Appelez-nous -
18 R203 Nut, Snap - In   (Replaces: 76204) In-Stock Immediately $ 91.14

19 Y0091308 Plate, Access Appelez-nous -
20 Y69013 Mounting Bracket, Oven Light Appelez-nous -
21 Y69760 Spacer, Storage Drawer Appelez-nous -
22 91309 Insulation Retainer Appelez-nous -
23 68418 Roller, Oven Door Appelez-nous -
24 Y0091602 Screw Appelez-nous -
25 91311 Heat Shield, Back Special Order $ 56.40

26 91310 Motor Appelez-nous -
27 91312 Heat Shield, Top & Bottom Appelez-nous -
28 Y71922 Spring, Oven Door Appelez-nous -
29 Y0091529 Stop, Spring Appelez-nous -
30 Y0091604 Washer Appelez-nous -
31 Y91543 Support, Oven Shell Appelez-nous -
32 Y0092747 Storage Drawer Track Lh Appelez-nous -
32 Y92746 Track - Storage Drawer - R.h. Appelez-nous -
33 91471 Front Trim, R.h. Appelez-nous -
34 91472 Front Trim, L.h. Appelez-nous -
35 91515 Hinge Blade, R.h. Appelez-nous -
36 91514 Hinge Blade, L.h. Appelez-nous -
37 0091612 Rivet Appelez-nous -
38 Y68072 Hinge Clip Appelez-nous -
39 Y0091393 Solenoid, Latch Appelez-nous -
40 Y68898 Insulation Retainer, Oven Ligh Appelez-nous -
41 71085 Assembly - Latch Mounting - Be Appelez-nous -
41 68101 Bracket, Switch Special Order $ 352.02

42 Y0091671 Retainer Ring Appelez-nous -
43 71918 Cotter Pin - Below Serial Appelez-nous -
44 Y0091475 Sub 65779 Handle, Latch Appelez-nous -
45 Y91368 Switch, Lock Release - Below S Appelez-nous -
46 Y0091523 Insulation, Esm Appelez-nous -
47 67844 Knob, Door Latch Special Order $ 27.03

48 Y68102 Latch Assembly - Oven Door Appelez-nous -
48 91532 Latch Assembly, Oven Door Appelez-nous -
49 Y0091369 Sub 65780 Switch Appelez-nous -
50 Y91549 Support, Latch Channel - Below Appelez-nous -
51 Y91533 Rod, Latch Release - Below Ser Appelez-nous -
52 Y68135 Brace, Element Channels Appelez-nous -
53 68136 Element Support Channel Appelez-nous -
54 Y71686 Vertical Flueway Support Appelez-nous -
55 Y71634 Vertical Flueway Appelez-nous -
56 71158 Horizontal Flueway Appelez-nous -
NI Y68091 Bracket - Clean Switch Mfg. Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List
