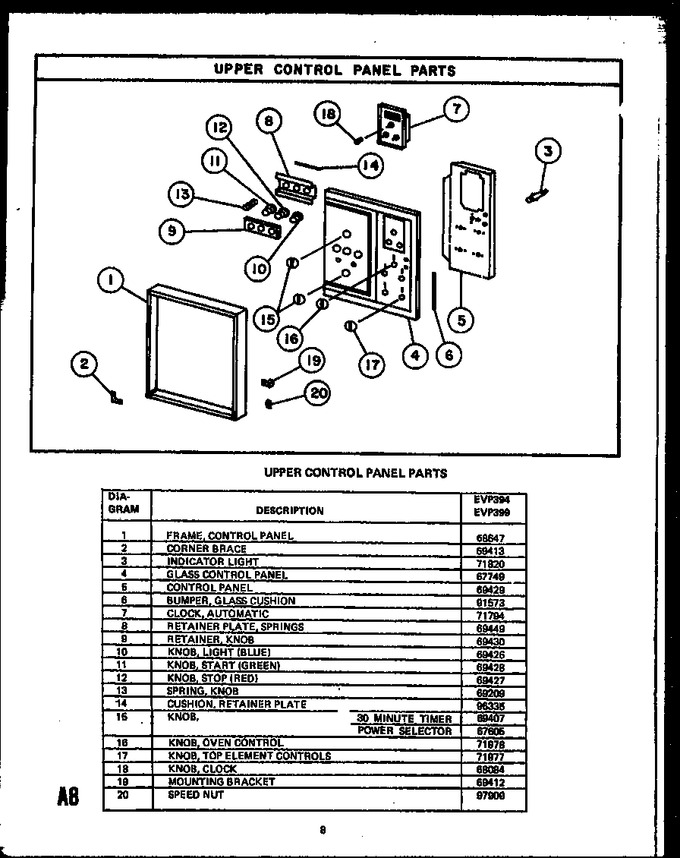

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 68647 | Frame, Control Panel |
|
$ 122.46 | |||||
| 2 | 69413 | Corner Brace |
|
$ 11.34 | |||||
| 3 | Y71820 | Indicator Light |
|
- | |||||
| 4 | Y67749 | Glass Control Panel |
|
- | |||||
| 5 | 69429 | Control Panel |
|
$ 264.68 | |||||
| 6 | 0091573 | Sub 68115 Bumper |
|
- | |||||
| 7 | Y71794 | Clock, Automatic |
|
- | |||||
| 8 | 69449 | Retainer Plate, Springs |
|
- | |||||
| 9 | 69430 | Retainer, Knob |
|
- | |||||
| 10 | 69426 | Knob, Light |
|
- | |||||
| 11 | 69428 | Knob, Start |
|
$ 149.99 | |||||
| 12 | 69427 | Knob, Stop |
|
- | |||||
| 13 | Y69209 | Spring, Knob |
|
- | |||||
| 14 | Y0096335 | Seal, Tesamol-1/4``x1/4``x41/4`` |
|
- | |||||
| 15 | 69407 | Knob, 30 Minutes Timer |
|
- | |||||
| 15 | 67605 | Knob, Timer & Variable Control |
|
- | |||||
| 16 | Y71978 | Knob, Oven Control |
|
- | |||||
| 17 | Y71977 | Knob, Top Element Controls |
|
- | |||||
| 18 | 68084 | Knob |
|
- | |||||
| 19 | 69412 | Mounting Bracket |
|
- | |||||
| 20 | 0097909 | Spee Nut Mount Brack To Frame |
|
- |
