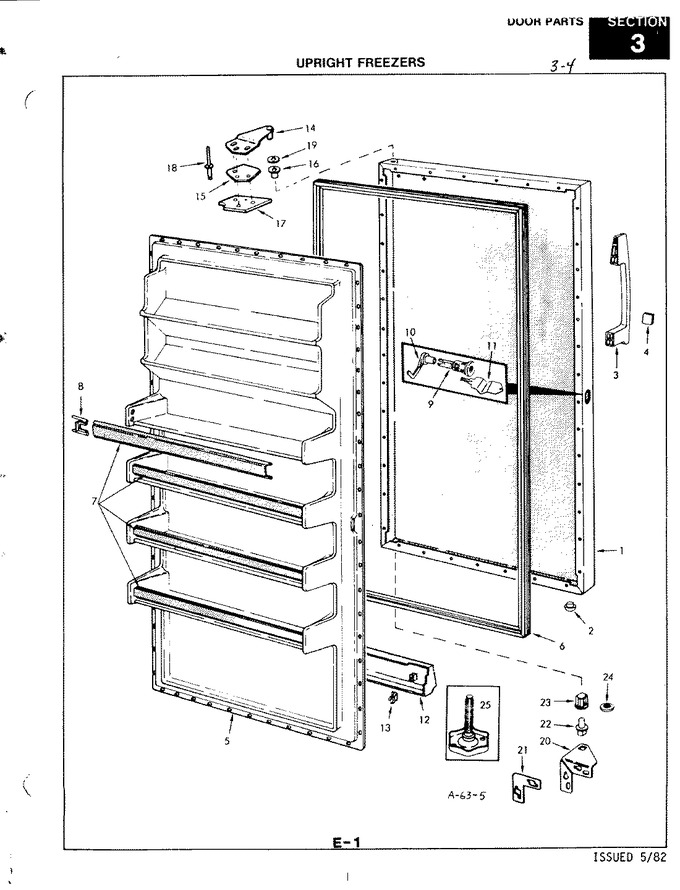

01 - Door
02 - Freezer Compartment
03 - Unit Compartment & System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 55625-36-WW | Panel, Outer Door |
|
- | |||||
| 2 | 495034-900 | Plug Button, Door |
|
- | |||||
| 3 | 56733-13 | Handle |
|
- | |||||
| 4 | 420063-1 | Washer |
|
- | |||||
| 4 | 59631-2 | Nameplate |
|
- | |||||
| 5 | 53730-25 | Inner Panel |
|
- | |||||
| 5 | 9986-12 | Screw,door Liner |
|
- | |||||
| 6 | 56287-8 | Seal |
|
- | |||||
| 7 | 57209-44 | Trim |
|
- | |||||
| 8 | 55556-1 | Trim Lock |
|
- | |||||
| 9 | 59995-3 | Lock Barrel |
|
- | |||||
| 10 | 54881-1 | Bolt |
|
- | |||||
| 11 | 62027-1 | Key |
|
- | |||||
| 12 | WP489478 | Screw, Kickplate Mtg. (Replaces: 9986-101) |
|
$ 6.98 | |||||
| 12 | 56477-7 | Kickplate |
|
- | |||||
| 13 | 52854-3 | Clip, Kickplate |
|
- | |||||
| 14 | 53709-10 | Hinge |
|
- | |||||
| 14 | WP3-24838-048 | Screw (Replaces: 9986-87) |
|
$ 7.00 | |||||
| 15 | 57397-1 | Shim |
|
- | |||||
| 16 | 55781-1 | Bushing |
|
- | |||||
| 17 | 57396-1 | Tapping Plate |
|
- | |||||
| 18 | WP210720 | Rivet (Replaces: 26397-6) |
|
$ 12.14 | |||||
| 19 | WP52185-1 | Washer (Replaces: 52185-1) |
|
Immediately | $ 9.47 | ||||
| 20 | 53671-10 | Hinge |
|
- | |||||
| 20 | 403062-1 | Screw |
|
- | |||||
| 21 | 53688-3 | Spacer |
|
- | |||||
| 22 | 53672-1 | Pin, Lower Hinge |
|
- | |||||
| 23 | 66034-1 | Cup (Replaces: 55424-1) |
|
$ 19.76 | |||||
| 24 | 54233-1 | Washer |
|
$ 7.71 | |||||
| 25 | W11117769 | Leg, Leveling (Replaces: 6012-8) |
|
Immediately | $ 16.61 |
