01 - Door

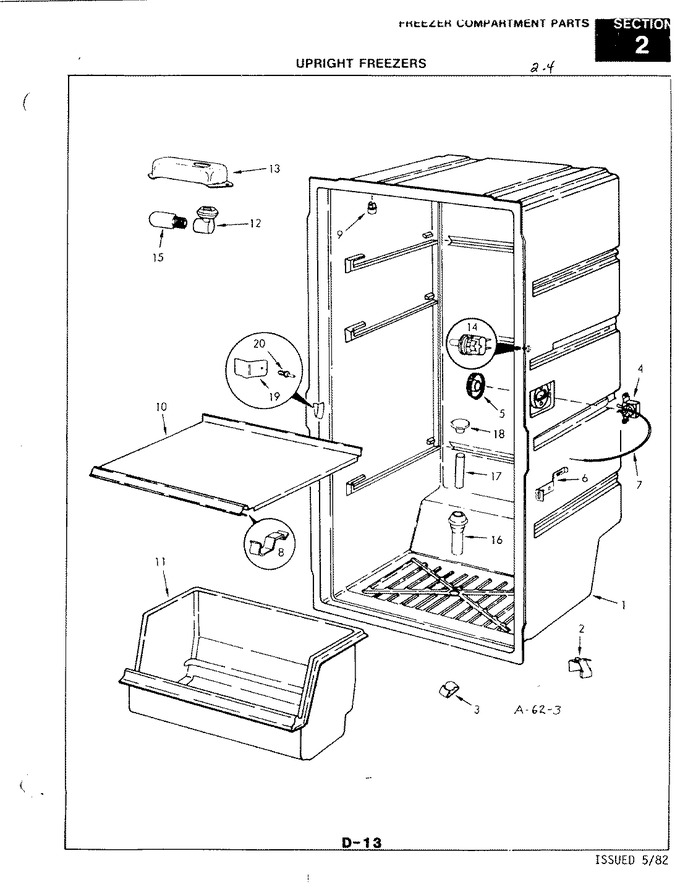

02 - Freezer Compartment
03 - Unit Compartment & System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 57353-1 | Food Liner |
|
- | |||||
| 2 | 54576-1 | Clip |
|
- | |||||
| 3 | 58083-1 | Clip |
|
- | |||||
| 4 | 406015-103 | Screw |
|
- | |||||
| 4 | 52881-21 | Control, Temperature |
|
- | |||||
| 5 | 26621-27 | Knob |
|
- | |||||
| 6 | 57311-1 | Bracket |
|
- | |||||
| 6 | WP90767 | Screw (Replaces: 400014-1) |
|
Immediately | $ 7.04 | ||||
| 7 | 4008-13 | Tubing |
|
- | |||||
| 8 | 54667-1 | Clip |
|
- | |||||
| 9 | 56142-8 | Nut |
|
- | |||||
| 10 | 53743-41 | Frzr Shelf |
|
- | |||||
| 10 | 402025-1 | Screw |
|
- | |||||
| 11 | 53757-5 | Drawer |
|
- | |||||
| 12 | 27659-3 | Lamp Holder |
|
- | |||||
| 13 | 54666-1 | Housing |
|
- | |||||
| 14 | 56432-2 | Switch |
|
- | |||||
| 15 | 54666-1 | Housing |
|
- | |||||
| 15 | WPA3073101 | Bulb (Replaces: 20174-2) |
|
Immediately | $ 10.90 | ||||
| 16 | 54531-4 | Grommet |
|
- | |||||
| 17 | 54680-3 | Drain Tube |
|
- | |||||
| 18 | 60321-1 | Plug |
|
- | |||||
| 19 | 55395-4 | Lock Plate |
|
- | |||||
| 20 | 59920-1 | Stud, Mounting Coil Cover |
|
- |
