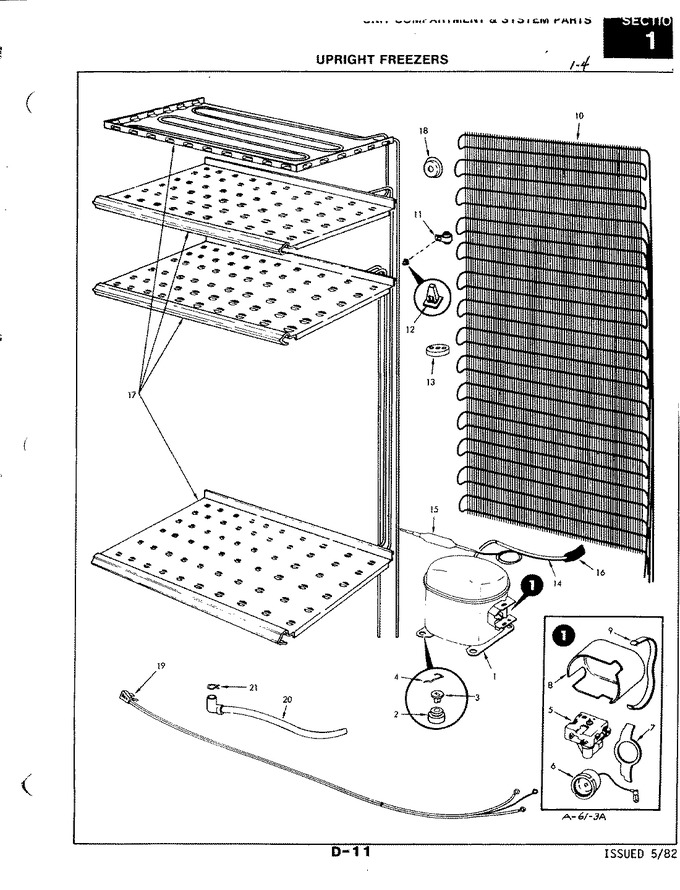

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | RA979T | Compressor |
|
- | |||||
| 2 | 17245-3 | Grommet |
|
- | |||||
| 3 | 52656-2 | Plug, Compressor |
|
- | |||||
| 4 | 55624-1 | Clip |
|
- | |||||
| 5 | 9286-91 | Relay |
|
- | |||||
| 6 | 53067-58 | Overload |
|
- | |||||
| 7 | 28848-1 | Clip |
|
- | |||||
| 8 | 28849-1 | Cover |
|
- | |||||
| 9 | 28850-3 | Clip |
|
- | |||||
| 10 | WP489478 | Screw, Kickplate Mtg. (Replaces: 9986-101) |
|
$ 6.98 | |||||
| 10 | RA43615-42 | Condenser |
|
- | |||||
| 11 | 22504-1 | Clamp |
|
- | |||||
| 12 | 57231-1 | Nut |
|
- | |||||
| 13 | 63406-1 | Cushion |
|
- | |||||
| 14 | RA43605-45 | Heat Exchanger |
|
- | |||||
| 15 | WPW10143759 | Drier (Replaces: 13900) |
|
Immediately | $ 27.70 | ||||
| 16 | 26275-15 | Insulation |
|
- | |||||
| 17 | RA43649-40 | Frzr Shelf |
|
- | |||||
| 18 | 55751-1 | Grommet |
|
- | |||||
| 19 | 52877-8 | Wire Harness |
|
- | |||||
| 20 | 58831-1 | Drain Hose |
|
- | |||||
| 21 | RA43682-1 | Flange Heater |
|
- | |||||
| 21 | WP596669 | Clamp, Drain Hose (Replaces: 9602-3) |
|
Immediately | $ 7.56 | ||||
| 21 | 27263-1 | Clip |
|
- |
