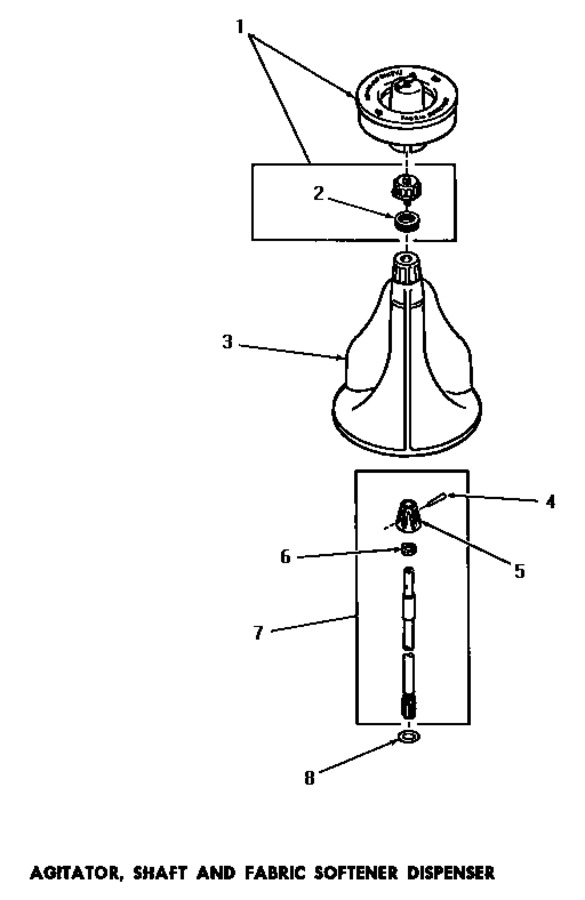

07 - Agitator, Shaft & Fabric Softener Disp


08 - Bleach Dispenser


09 - Boot, Chassis & Drain Tub


10 - Cabinet Top & Loading Door


11 - Control Hood


12 - Control Panel, Control Hood & Controls


13 - Counterbalance Weight, Brkt & Mtg Plate


14 - Door Safety Switch


15 - Drain


16 - Main Bearing Assy


17 - Mixing Valves


18 - Motor & Fluid Drive


19 - Panels


20 - Power Cord, Wire & Terminals


21 - Reservoir & Drain Valve


22 - Reservoir & Drain Valve


23 - Transmission Assy


24 - Water Inlet And Filler Hose


25 - Water Inlet And Filler Hose


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	26014		Assy,cap & Ring-agitat				$ 14.95
2	20136		Ring		Appelez-nous	-
3	26006		Assy,agitator				$ 5.49
4	20243		Pin,taper		Appelez-nous	-
5	20056		Block, Drive				$ 3.68
6	20057		Washer, 21/32 Id X 1.156 Od		Appelez-nous	-
7	21751		Agitator Shaft Assembly		Appelez-nous	-
8	22135		Washer		Appelez-nous	-
