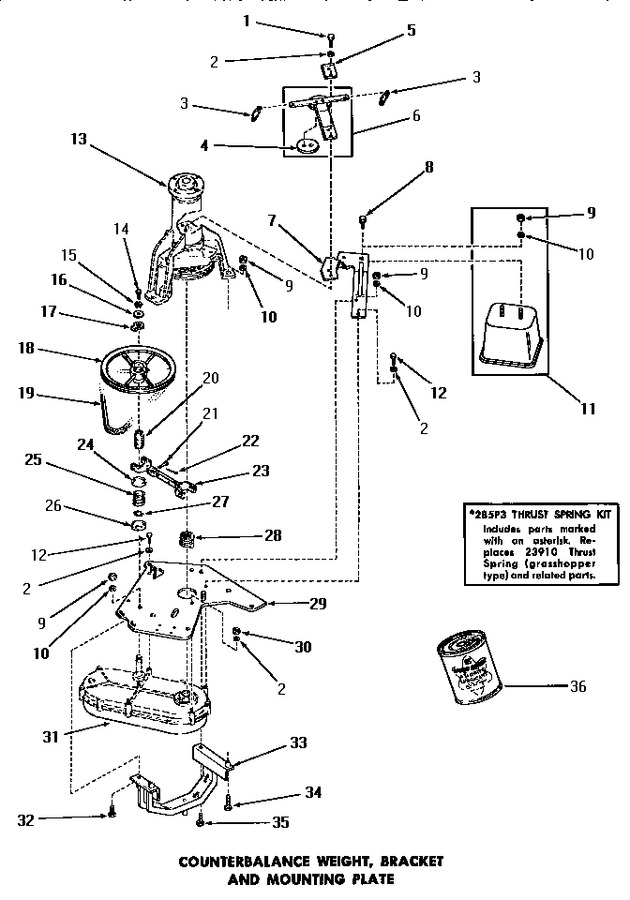

13 - Counterbalance Weight, Brkt & Mtg Plate


14 - Door Safety Switch


15 - Drain


16 - Main Bearing Assy


17 - Mixing Valves


18 - Motor & Fluid Drive


19 - Panels


20 - Power Cord, Wire & Terminals


21 - Reservoir & Drain Valve


22 - Reservoir & Drain Valve


23 - Transmission Assy


24 - Water Inlet And Filler Hose


25 - Water Inlet And Filler Hose


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	24233		Screw,cap-1/4-20 X 3/4		Appelez-nous	-
2	03189		Lockwasher,1/4 Std-c P		Appelez-nous	-
3	23632		Spring		Appelez-nous	-
4	20453		Disc,friction		Appelez-nous	-
5	22614		Plate,support		Appelez-nous	-
6	20168		Assy,snubber		Appelez-nous	-
7	25139		Bracket		Appelez-nous	-
8	23928		Cap Screw And Lockwasher		Appelez-nous	-
9	WP62739		Nut,hex 3/8-16   (Replaces: 20274)				$ 6.85
10	20277		Lockwasher,3/8 Std X 3		Appelez-nous	-
11	25230		Counterbalance Weight				$ 13.00
12	20264		Screw,1/4-20 X 2 Hex H		Appelez-nous	-
13	Y00000000		See Note Main Bearing		Appelez-nous	-
14	02422		Screw,1/4-20 X 1/2 Hex		Appelez-nous	-
15	02431		Lockwasher,1/4 Ext Shk		Appelez-nous	-
16	23716		Washer		Appelez-nous	-
17	23643		Pulley Stop		Appelez-nous	-
18	23773		Assy,pulley-transmissi		Appelez-nous	-
19	23758		Belt		Appelez-nous	-
20	23644		Hub				$ 19.80
21	23718		Pin,shifter		Appelez-nous	-
22	20248		Pin,cotter		Appelez-nous	-
23	23732		Assy,shifter Fork		Appelez-nous	-
24	26610		Retainer,spring-upper		Appelez-nous	-
25	26609		Spring		Appelez-nous	-
26	26611		Retainer,spring-lower		Appelez-nous	-
27	23751		Ring,retaining		Appelez-nous	-
28	23647		Jaw		Appelez-nous	-
29	24749		Mounting Plate		Appelez-nous	-
30	WPW10139757		Nut   (Replaces: 20275)				$ 7.16
31	Y00000000		See Note Transmission Assembly		Appelez-nous	-
32	22687		Screw		Appelez-nous	-
33	22702		Assy,yoke & Sleeve		Appelez-nous	-
34	Y22688		Screw,cap-3/8-16x1-1/4		Appelez-nous	-
35	20255		Screw,3/8-16 X 1 Hex H		Appelez-nous	-
36	03200		A-d Drive Lubricant				$ 29.08
NI	285P3		Kit,spring		Appelez-nous	-
