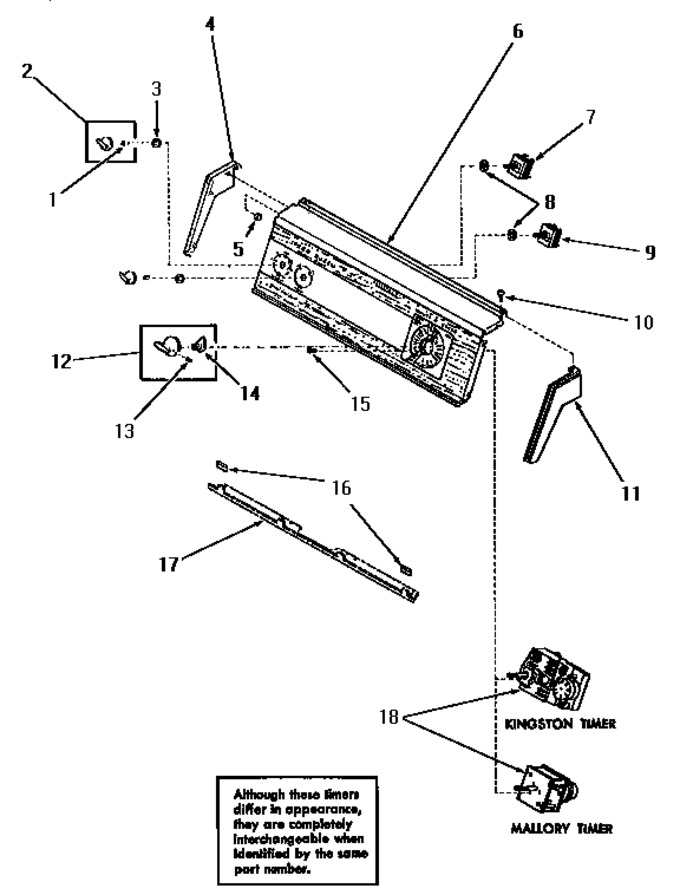

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	22244		Clip,c Xreplace		Appelez-nous	-
2	22245		Xreplace		Appelez-nous	-
3	24205		Nut,knurled 3/8-24				$ 244.00
4	25124		Control Hood End, Left		Appelez-nous	-
5	25126		Palnut,3/16 Sf188		Appelez-nous	-
6	24846		Control Panel		Appelez-nous	-
7	24392		Switch Temp		Appelez-nous	-
8	91176		Lockwasher,3/8 Intshkp				$ 1.44
9	21302		Switch,motor-2sp		Appelez-nous	-
10	25232		Screw,8ab-18x7/8 Oval		Appelez-nous	-
11	25123		Control Hood End, Right		Appelez-nous	-
12	24858		Assy,knob-timer		Appelez-nous	-
13	25285		Setscrew		Appelez-nous	-
14	24857		Indicator		Appelez-nous	-
15	70212		Screw,8-32 X 5/32 Rd H		Appelez-nous	-
16	24859		Sleeve,support Angle		Appelez-nous	-
17	Y00000000		See Note Panel Support Bracket		Appelez-nous	-
18	24828		Timer		Appelez-nous	-
