01 - Body
02 - Control Panel
03 - Door/drawer
04 - Gas Controls
05 - Oven/base
06 - Top Assembly
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:

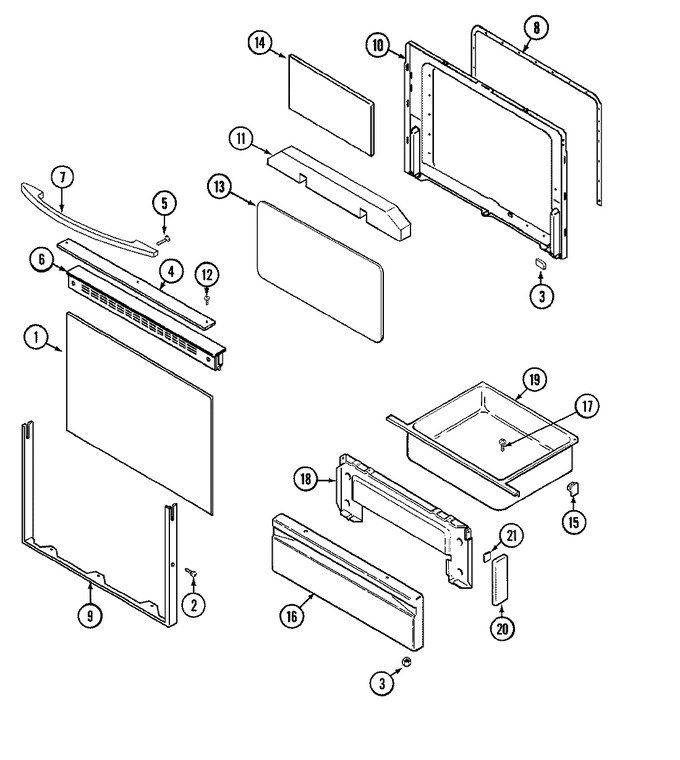

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74002057 | Glass, Door (wht) | 11 |
|
- | ||||
| 2 | WP98008544 | Screw (1/2``-wht) (Replaces: 7101P373-60) | 11 |
|
$ 11.89 | ||||
| 3 | WPW10131078 | Nut, Lock (Replaces: 7103P139-60) | 11 |
|
$ 4.00 | ||||
| 4 | 7728P094-60 | Insert, Door Trim (wht) | 11 |
|
$ 82.40 | ||||
| 5 | WP98008544 | Screw (1/2``-wht) (Replaces: 7101P373-60) | 11 |
|
$ 11.89 | ||||
| 6 | 74002066 | Trim, Top (wht) | 11 |
|
$ 96.79 | ||||
| 6 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 11 |
|
Immediately | $ 12.62 | |||
| 7 | 74002062 | Handle (wht) | 11 |
|
- | ||||
| 8 | WP7212P043-60 | Seal, Door (Replaces: 7212P043-60) | 11 |
|
Immediately | $ 56.83 | |||
| 9 | 7706P310-60 | Frame, Door (wht) | 11 |
|
- | ||||
| 10 | 74002785 | Lining, Door | 11 |
|
- | ||||
| 10 | WP7103P114-60 | Nut, Snap (round-wht) (Replaces: 7103P039-60) | 11 |
|
$ 9.89 | ||||
| 11 | 74002458 | Insulation, Door | 11 |
|
- | ||||
| 12 | 74001278 | Screw (wht) | 11 |
|
$ 5.83 | ||||
| 13 | 7101P209-60 | Screw | 11 |
|
- | ||||
| 13 | 74002461 | Baffle, Door | 11 |
|
- | ||||
| 14 | 74002459 | Glass, Door (inner) | 11 |
|
- | ||||
| 15 | 8016P011-60 | Glide, Drawer | 11 |
|
- | ||||
| 16 | 2416W002-71 | Panel, Drawer (wht) | 11 |
|
- | ||||
| 17 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 11 |
|
Immediately | $ 12.62 | |||
| 18 | 2404F044-80 | Lining | 11 |
|
- | ||||
| 19 | 3405F018-80 | Drawer, Storage | 11 |
|
- | ||||
| 20 | 7744P090-60 | End Cap, Drawer (wht) | 11 |
|
- | ||||
| 21 | 8270P098-60 | Tape | 11 |
|
$ 5.02 |
