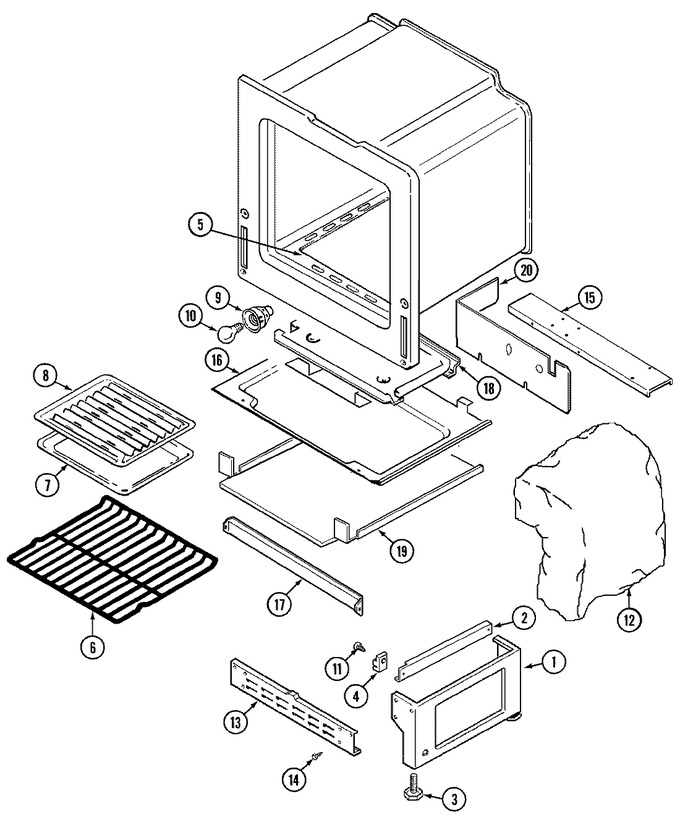

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4020W015-80 | Pedestal, Sides | 11 |
|
- | ||||
| 2 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 11 |
|
Immediately | $ 12.62 | |||
| 2 | 3406F028-51 | Runner, Drawer | 11 |
|
- | ||||
| 3 | W11665456 | Leg, Leveling (Replaces: 74002373) | 11 |
|
Immediately | $ 25.30 | |||
| 4 | 8004P026-60 | Support, Drawer (rear) | 11 |
|
$ 9.29 | ||||
| 5 | 5504A003-19 | Bottom, Oven | 11 |
|
- | ||||
| 5 | 3601F239-45 | Baffle, Oven Bottom | 11 |
|
- | ||||
| 6 | WPW10282492 | Rack, Oven (Replaces: 74002105) | 11 |
|
$ 65.15 | ||||
| 7 | 3401F014-19 | Pan, Broil | 11 |
|
- | ||||
| 8 | 4396923 | Insert, Broil Pan (Replaces: 3413F013-19) | 11 |
|
Immediately | $ 52.04 | |||
| 9 | 7408P037-60 | Receptacle, Bulb | 11 |
|
- | ||||
| 10 | 8009 | Bulb-oven (Replaces: 7407P103-60) | 11 |
|
Immediately | $ 16.80 | |||
| 11 | WPW10348409 | Screw (8abx13/16-zn) (Replaces: 74001449) | 11 |
|
Immediately | $ 6.98 | |||
| 12 | 74002371 | Insulation, Oven Back | 11 |
|
- | ||||
| 12 | 74002370 | Insulation, Oven Wrap | 11 |
|
- | ||||
| 13 | 4020F001-80 | Pedestal, Front/rear | 11 |
|
- | ||||
| 14 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 11 |
|
Immediately | $ 12.62 | |||
| 15 | W11233072 | Screw (Replaces: 7101P290-60) | 11 |
|
Immediately | $ 12.62 | |||
| 15 | 74002593 | Support, Valve/regulator | 11 |
|
- | ||||
| 16 | 3804F112-51 | Retainer, Insulation | 11 |
|
- | ||||
| 16 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 11 |
|
Immediately | $ 12.62 | |||
| 17 | WP74003976 | Screw W/washer (Replaces: 7101P124-60) | 11 |
|
$ 6.47 | ||||
| 17 | 74001219 | Baffle, Oven Front | 11 |
|
- | ||||
| 18 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 11 |
|
Immediately | $ 12.62 | |||
| 18 | 74001651 | Pan, Bake Burner | 11 |
|
- | ||||
| 19 | W11233072 | Screw (Replaces: 7101P290-60) | 11 |
|
Immediately | $ 12.62 | |||
| 19 | 3604F205-51 | Shield, Drawer | 11 |
|
- | ||||
| 20 | W11233072 | Screw (Replaces: 7101P290-60) | 11 |
|
Immediately | $ 12.62 | |||
| 20 | 4005F429-51 | Cover, Valve | 11 |
|
- |
