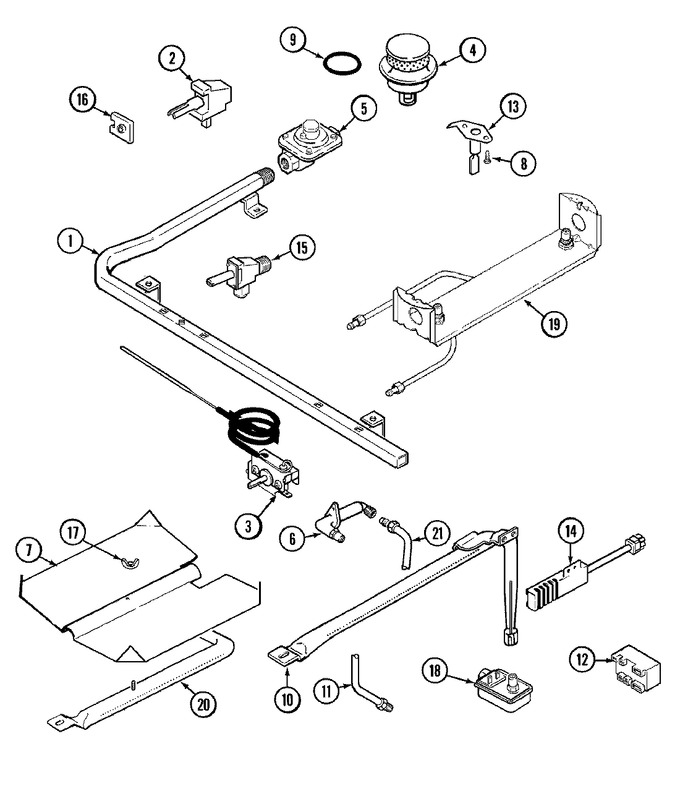

04 - Gas Controls
05 - Oven/base
06 - Top Assembly
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 11 |
|
Immediately | $ 12.62 | |||
| 1 | 74002531 | Pipe, Manifold | 11 |
|
- | ||||
| 2 | 74002532 | Valve, Burner | 11 |
|
- | ||||
| 2 | 74002433 | Screw, Valve | 11 |
|
- | ||||
| 2 | 7502P252-60 | Valve, Burner | 11 |
|
- | ||||
| 3 | 7101P280-60 | Screw W/washer (blk) | 11 |
|
- | ||||
| 3 | 74002788 | Thermostat | 11 |
|
- | ||||
| 4 | WP3412D024-26 | Sealed Burner Assy. (gry) (Replaces: 3412D018-26) | 11 |
|
Immediately | $ 90.27 | |||
| 5 | 7510P049-60 | Regulator, Pressure | 11 |
|
- | ||||
| 6 | WP3387230 | Screw, No.10 X .5 Tya (Replaces: 7101P274-60) | 11 |
|
Immediately | $ 7.69 | |||
| 6 | 7507P088-60 | Fitting, Broil Burner | 11 |
|
- | ||||
| 6 | 3605F186-45 | Plate, Fitting | 11 |
|
- | ||||
| 6 | 7101P287-60 | Screw, Metal Grounding | 11 |
|
$ 12.03 | ||||
| 7 | 3601F217-45 | Baffle, Broil | 11 |
|
- | ||||
| 8 | WPW10253196 | Screw (Replaces: Y707113) | 11 |
|
$ 3.76 | ||||
| 9 | WP3412D024-09 | Gasket, Burner (Replaces: 7201P050-60) | 11 |
|
Immediately | $ 92.69 | |||
| 10 | 3403D043-45 | Burner, Bake | 11 |
|
- | ||||
| 10 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 11 |
|
Immediately | $ 12.62 | |||
| 11 | 3414F102-44 | Tubing, Broil Burner (3/8``) | 11 |
|
- | ||||
| 11 | 1555251 | Nut, Loxit (3/8``) | 11 |
|
- | ||||
| 12 | 12001596 | Module, Spark (Replaces: 7431P027-60) | 11 |
|
Immediately | $ 85.93 | |||
| 13 | W10124350 | Not Required Part Or See Note Igniter Not Sold Separately (must Order Sealed Burner- Item No.4) | 11 |
|
- | ||||
| 14 | WP3351614 | Screw (Replaces: 7101P328-60) | 11 |
|
Immediately | $ 6.26 | |||
| 14 | 12400035 | Igniter, Oven (Replaces: 7432P076-60) | 11 |
|
Immediately | $ 60.44 | |||
| 15 | 7101P044-60 | Screw, Valve | 11 |
|
- | ||||
| 15 | 74002389 | Valve, Shut Off | 11 |
|
- | ||||
| 16 | 74002533 | Switch, Igniter | 11 |
|
- | ||||
| 16 | WP7403P287-60 | Switch, Igniter (Replaces: 7403P287-60) | 11 |
|
$ 130.75 | ||||
| 17 | 7103P030-60 | Nut, Wing | 11 |
|
$ 6.37 | ||||
| 18 | 74002387 | Valve, Oven | 11 |
|
$ 195.43 | ||||
| 19 | 74002534 | Fitting, Orifice (lt) | 11 |
|
- | ||||
| 19 | 74002535 | Fitting, Orifice (rt) | 11 |
|
- | ||||
| 20 | 3403D024-45 | Burner, Broil | 11 |
|
- | ||||
| 21 | 3414F102-44 | Tubing, Broil Burner (3/8``) | 11 |
|
- |
