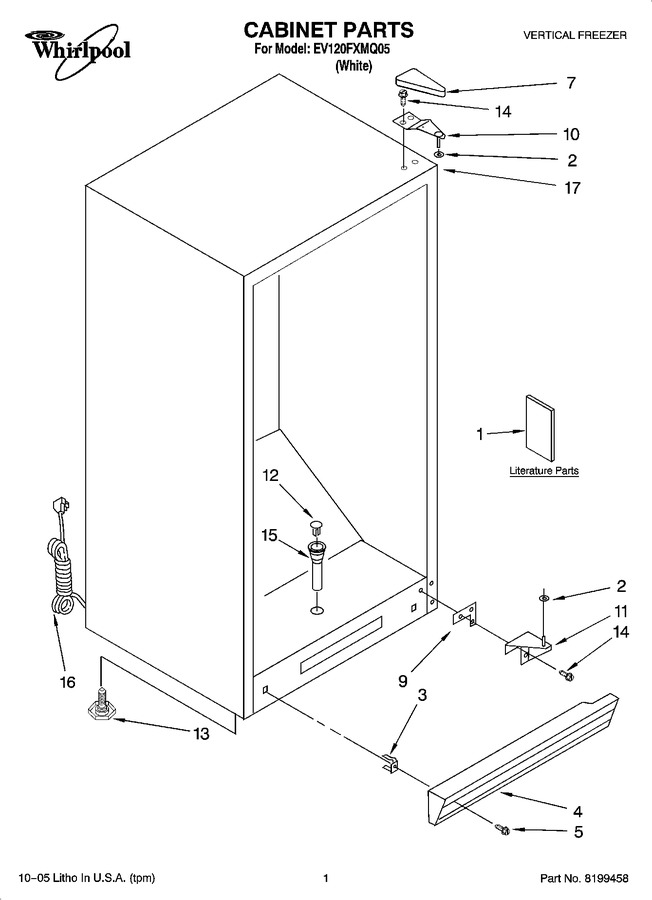

01 - Cabinet Parts
02 - Liner Parts
03 - Unit Parts
04 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT2300214 | Literature Parts (owner`s Manual) |
|
- | |||||
| 1 | LIT4390677 | Literature Parts (energy Label) |
|
- | |||||
| 2 | W10851331 | Washer, Door Spacer (Replaces: 4390520) |
|
$ 9.51 | |||||
| 3 | 1-80247-101 | Clip, Grille (Replaces: 4356803) |
|
Immediately | $ 9.86 | ||||
| 4 | 4357271 | Grille |
|
- | |||||
| 5 | WP489478 | Screw (Replaces: 4356805) |
|
$ 6.98 | |||||
| 7 | 4357279 | Hinge Cover |
|
$ 46.56 | |||||
| 9 | 4390489 | Shim, Bottom |
|
$ 6.26 | |||||
| 10 | 2-81016-105 | Hinge, Top (Replaces: 8210222) |
|
$ 37.06 | |||||
| 11 | 8210223 | Hinge, Bottom |
|
- | |||||
| 12 | 4357019 | Drain Plug |
|
- | |||||
| 13 | W11117769 | Leg, Leveler (2) (Replaces: 4390866) |
|
Immediately | $ 16.61 | ||||
| 14 | WP8204624 | Screw (Replaces: 4356830) |
|
$ 14.99 | |||||
| 15 | 4357269 | Grommet, Drain |
|
- | |||||
| 16 | 4390693 | Power Cord |
|
- | |||||
| 17 | N/A | Cabinet (not A Serviceable Part) |
|
- |
