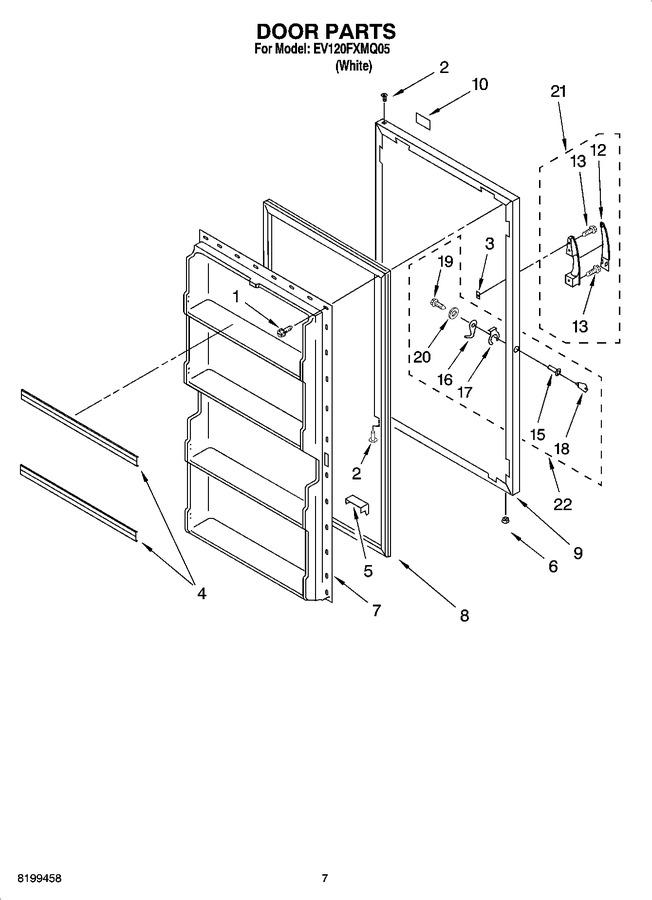

SELECT A DIAGRAM

01 - Cabinet Parts


02 - Liner Parts


03 - Unit Parts


04 - Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4390598		Screw   (Replaces: 4357290)				$ 18.89
2	4390731		Bushing, Hinge				$ 19.69
3	4390680		Anchor, Screw		Appelez-nous	-
4	4390606		Door Shelf Trim (4)		Appelez-nous	-
5	4356893		Foam Block		Appelez-nous	-
6	3-24898-007		Vent Plug   (Replaces: 4356894)				$ 9.72
7	4390694		Interior Door		Appelez-nous	-
8	4357136		Door Gasket				$ 173.12
9	4390920		Exterior Door		Appelez-nous	-
10	4390670		Nameplate		Appelez-nous	-
12	4390668		Insert, Handle		Appelez-nous	-
13	WP489491		Screw   (Replaces: 4390669)				$ 6.26
15	4357145		Lock, Body   (Replaces: 4356839)				$ 23.82
16	4357224		Lock, Bolt		Appelez-nous	-
17	4356842		Spring Clip				$ 12.24
18	WP4356840		Key   (Replaces: 4356840)				$ 9.67
19	WP489478		Screw   (Replaces: 4356843)				$ 6.98
20	4356992		Washer		Appelez-nous	-
21	4390667		Handle Assembly (includes Items 12 & 13)		Appelez-nous	-
22	4357145		Lock Assembly (includes Items 15, 16, 17, 18, 19 & 20)				$ 23.82
	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 106.15
	WP505587		Sealer, Master (1 Qt.)   (Replaces: 505587)			Immediately	$ 156.56
	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 208.40
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
	798883		Enamel (almond) (1 Qt. Uncut)		Appelez-nous	-
	212643		Sealer, Gum (4 Feet)			Immediately	$ 73.92
	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
	N/A		Miscellaneous		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
