SELECT A DIAGRAM

01 - Cabinet Parts

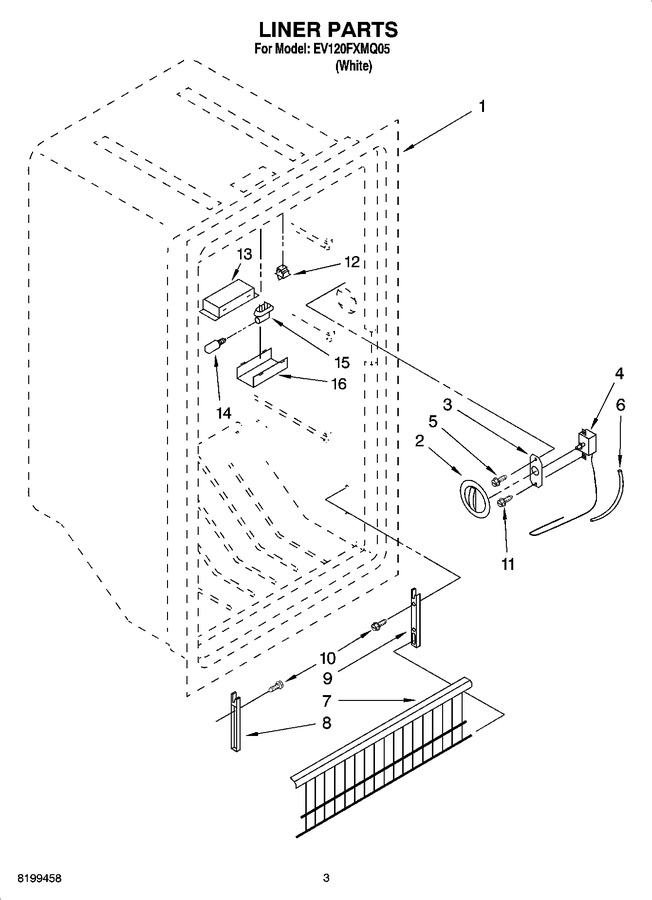

02 - Liner Parts


03 - Unit Parts


04 - Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	4390619		Control Knob		Appelez-nous	-
3	1-81154		Control Plate   (Replaces: 4357041)				$ 12.86
4	4390620		Thermostat		Appelez-nous	-
5	WPW10068250		Screw   (Replaces: 4357042)				$ 3.66
6	WP2196003		Tubing, Thermostat   (Replaces: 8210246)				$ 7.16
7	4357179		Gate		Appelez-nous	-
8	4357294		Support, Fence (l.h)		Appelez-nous	-
9	4357293		Support, Fence (r.h)				$ 48.96
10	4356891		Screw		Appelez-nous	-
11	W11233072		Screw   (Replaces: 4357043)			Immediately	$ 12.62
12	W11384469		Light, Switch   (Replaces: 4390513)			Immediately	$ 33.51
13	4390626		Bracket		Appelez-nous	-
14	W10873798		Light Bulb   (Replaces: 4356311)			Immediately	$ 12.53
15	4356874		Light Socket		Appelez-nous	-
16	4357285		Light Shield		Appelez-nous	-
