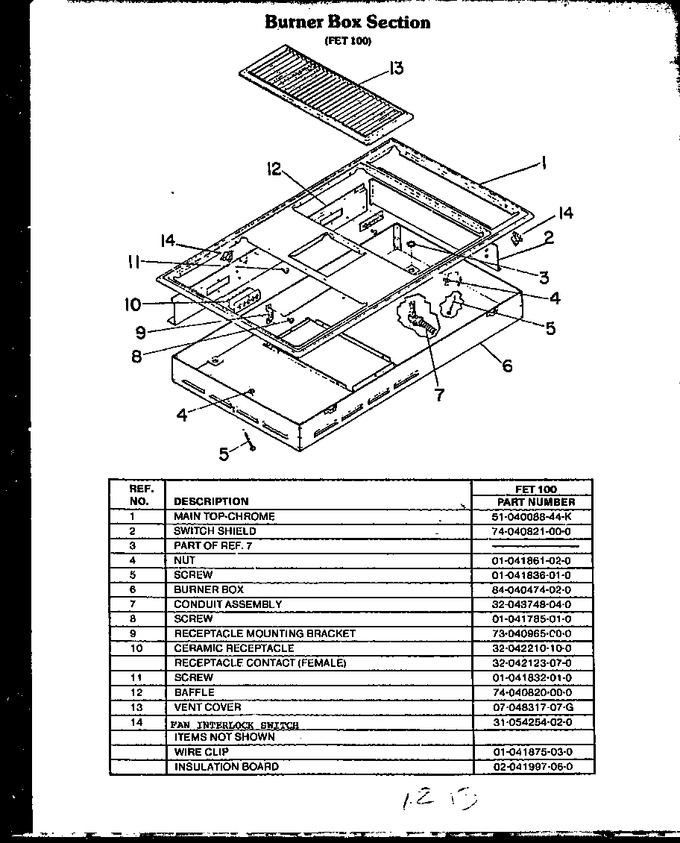

01 - Burner Box Section


02 - Control Section


03 - Cooktop Module (xst-306)


04 - Glass-ceramic Module (xst-307)


05 - Page 1


06 - Rotisserie (xst-110)


07 - Ventilation Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0040088		Sub 300166, Main Top, Chrome		Appelez-nous	-
2	Y0040821		Switch Shield Et-590 595		Appelez-nous	-
3	Y00000000		See Note Part Of Ref. 7		Appelez-nous	-
4	0041861		Nut 1/4-20 Sq. Et590 595		Appelez-nous	-
5	Y0041836		Screw 1/4-20-4`` 590 595		Appelez-nous	-
6	0040474		Burner Box W/a W/vent Ket595		Appelez-nous	-
7	Y0043748		5651118 C		Appelez-nous	-
8	Y0041785		Screw, No.6-32 X .250 Pan Hd Ph		Appelez-nous	-
9	Y0040965		Plug Block Mtg Brkt Et590 595		Appelez-nous	-
10	Y0042210		Plug Block Modular Top		Appelez-nous	-
10	Y0042123		Element, Contact-module Top		Appelez-nous	-
11	Y0041832		Screw No.8x3/8 Sq. Drive		Appelez-nous	-
12	0040820		Plug Block Baffle Et590 595		Appelez-nous	-
13	Y0048317		Cover, Vent Brushed Black		Appelez-nous	-
14	Y0054254		Switch, Fan		Appelez-nous	-
NI	Y0041875		Wire Clip		Appelez-nous	-
NI	Y0041997		Insulation Board		Appelez-nous	-
