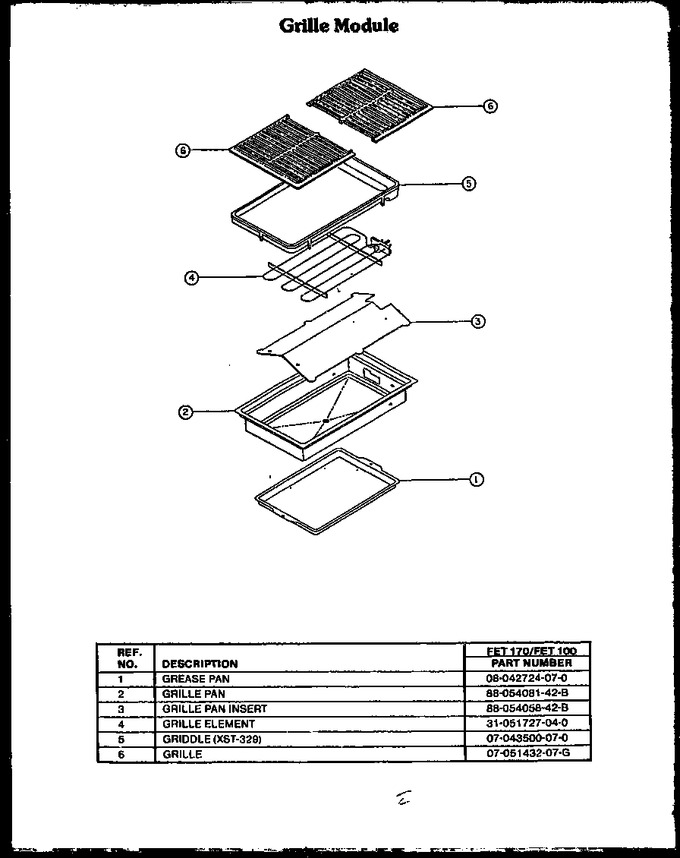

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y0042724 | Pan, Grease Kgt591 |
|
- | |||||
| 2 | 0054081 | Grille Pan W/strike Kit (blk) |
|
- | |||||
| 3 | Y0054058 | Grille Pan W/strike Kit (blk) |
|
- | |||||
| 4 | 0051727 | Element, Grille (240v-2400w) |
|
- | |||||
| 5 | Y0043500 | Griddle, Silvertone |
|
- | |||||
| 6 | 0051432 | Grill Casting (brushed Blk) |
|
- |
