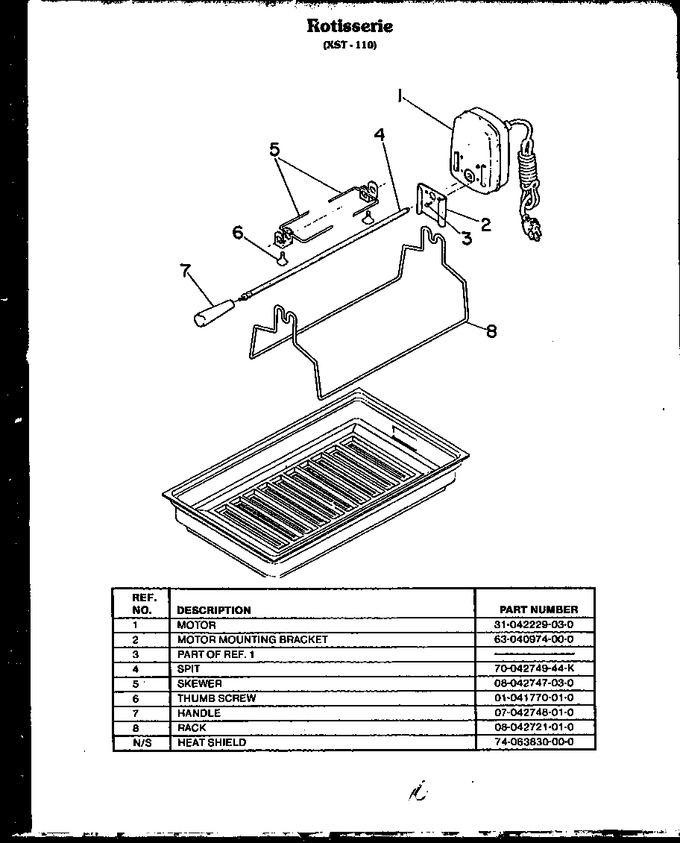

06 - Rotisserie (xst-110)
07 - Ventilation Section
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y0042229 | Rotiss Motor Xst310 |
|
- | |||||
| 2 | 0040974 | Motor Mtg Blkt Xst310 |
|
- | |||||
| 3 | Y00000000 | See Note Part Of Ref. 1 |
|
- | |||||
| 4 | 0042749 | Spit Xst310 |
|
- | |||||
| 5 | 0042747 | Skewer |
|
- | |||||
| 6 | 0041770 | Screw 1/4 20x1/2 Thumb |
|
- | |||||
| 7 | 0042748 | Rotisserie Handle |
|
- | |||||
| 8 | 0042721 | Rotiss Rack Xst310 |
|
- | |||||
| NI | 0063830 | Heat Shield, Rotiss. |
|
- |
