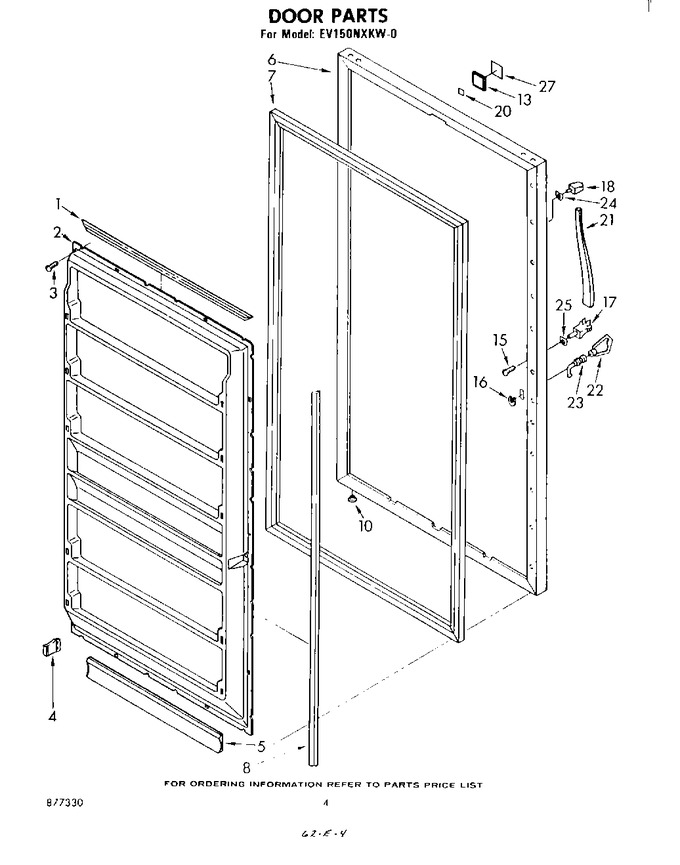

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	836115		Retainer, Gasket (2)		Appelez-nous	-
2	942657		Panel		Appelez-nous	-
3	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 7.07
3	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 12.62
4	982124		Retainer, Trim (8)		Appelez-nous	-
5	984916		Trim, Shelf		Appelez-nous	-
6	934995		Door, Exterior (white)		Appelez-nous	-
6	934997		Door, Exterior (new Gold)		Appelez-nous	-
6	934999		Door, Exterior (almond)		Appelez-nous	-
6	934998		Door, Exterior (new Avocado)		Appelez-nous	-
6	934996		Door, Exterior (coffee)		Appelez-nous	-
7	2188439A		Gasket, Magnetic   (Replaces: 981092)		Appelez-nous	-
8	836120		Retainer, Gasket (side) (2)		Appelez-nous	-
10	534927		Plug, Hole (2)		Appelez-nous	-
13	849310		Escutcheon		Appelez-nous	-
15	488818		Screw, .190dt X 3/4				$ 42.82
16	983465		Clip, Lock		Appelez-nous	-
17	982947		End, Handle (bottom)		Appelez-nous	-
18	982948		End, Handle (top)		Appelez-nous	-
20	991259		Tape Strip		Appelez-nous	-
21	982978		Handle		Appelez-nous	-
22	WP842177		Key   (Replaces: 842177)				$ 7.29
23	983464		Lock		Appelez-nous	-
24	941918		Shim, Handle End		Appelez-nous	-
25	941917		Shim, Handle End		Appelez-nous	-
27	877330		List, Parts		Appelez-nous	-
27	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
27	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
27	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
27	876370		Kit, Insulatio 5 Pcs. 3`` X 24`` X 48``)   (Replaces: 479976)				$ 208.40
27	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 44.36
27	511881		Lacquer, Bright Aluminum (12 Oz. Spray Can)				$ 278.35
27	606755		Bag, Insulation (36-5/8`` X 46``)				$ 70.61
27	WP279368		Cement, Insulation (1 Oz.)   (Replaces: 797403)			Immediately	$ 99.82
27	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
27	942633		Guide, Use & Care		Appelez-nous	-
27	656493		Booklet, Freezing		Appelez-nous	-
27	942654		Energy Guide		Appelez-nous	-
27	992905		Wiring & Service Sheet		Appelez-nous	-
27	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 156.56
27	941746		Insert		Appelez-nous	-
27	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 98.33
27	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 54.25
27	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
27	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
27	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
27	799351		Thiner, Blend (1 Gal.)		Appelez-nous	-
27	212643		Sealer, Gum (22 Pcs. 3/16`` X 7``)			Immediately	$ 73.92
	285006		Enamel, Black (12 Oz. Spray Can)   (Replaces: 799339)			Immediately	$ 51.34
	261888		Xenamel, New Avocado (13 Oz. Spray Can)		Appelez-nous	-
	261886		Xenamel, Coffee (13 Oz. Spray Can)		Appelez-nous	-
	350930		Xenamel, White (12 Oz. Spray Can)   (Replaces: 799343)			Immediately	$ 34.39
	206925		Xleveler, Enamel (12 Oz. Spray Can)		Appelez-nous	-
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 46.30
	350942		Xprimer, White (12 Oz. Spray Can)   (Replaces: 206922)				$ 80.69
	261890		Xenamel, New Gold (13 Oz. Spray Can)		Appelez-nous	-
