New Model Search:

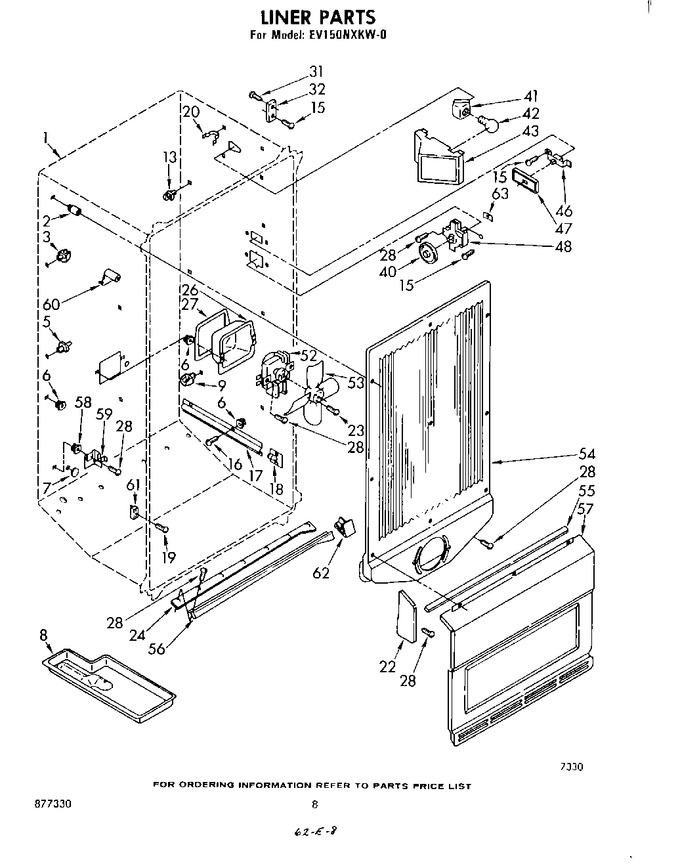

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 512792 | Spacer (9) |
|
- | |||||
| 3 | 523263 | Stud, R.s. (3) |
|
- | |||||
| 3 | 523264 | Stud, L.s. (3) |
|
- | |||||
| 5 | 529758 | Stud, Shelf (6) |
|
- | |||||
| 6 | 842339 | Grommet |
|
- | |||||
| 7 | 519890 | Plug, Hole (2) |
|
- | |||||
| 8 | 842041 | Tray, Evaporating |
|
$ 64.92 | |||||
| 9 | 984394 | Stud, Shelf (2) |
|
- | |||||
| 13 | 651590 | Stud, Hook (2) |
|
- | |||||
| 15 | WP489128 | Screw, 8-32 X 3/8 (ground) (Replaces: 488500) |
|
$ 9.79 | |||||
| 16 | WP488729 | Screw, 8 X 1/2 (Replaces: 487909) |
|
Immediately | $ 7.01 | ||||
| 17 | 981085 | Cover, Tube |
|
- | |||||
| 18 | 839826 | Cover, Tube |
|
- | |||||
| 19 | WP488163 | Screw, 8 X 13/16 (Replaces: 488208) |
|
$ 6.79 | |||||
| 20 | 533998 | Clip, Speed (4) |
|
- | |||||
| 22 | 981079 | Baffle, Evaporator (2) |
|
- | |||||
| 23 | 00487887 | Screw, 3-48 X 1/4 (Replaces: 487887) |
|
$ 220.32 | |||||
| 24 | 981083 | Gasket, Drain Trough |
|
- | |||||
| 26 | 836474 | Fan, Motor Cover |
|
- | |||||
| 27 | 836475 | Gasket, Cover |
|
- | |||||
| 28 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 12.62 | |||||
| 31 | 488684 | Screw, 8-32 X 1-1/2 |
|
- | |||||
| 32 | 547603 | Strap, Ground |
|
- | |||||
| 40 | 981934 | Knob |
|
- | |||||
| 41 | 4387478 | Socket (Replaces: 851067) |
|
Immediately | $ 99.14 | ||||
| 42 | 8009 | Bulb (Replaces: 527949) |
|
Immediately | $ 16.80 | ||||
| 43 | 848158 | Shield, Light |
|
- | |||||
| 46 | 845049 | Bracket, Switch |
|
- | |||||
| 47 | 984976 | Escutcheon, Power Saver |
|
- | |||||
| 48 | VF3 | Thermostat & Barrier Assembly (Replaces: 989437) |
|
$ 38.40 | |||||
| 52 | 482731 | Motor, Fan (Replaces: 548697) |
|
Immediately | $ 71.15 | ||||
| 53 | WP1100938 | Blade, Fan (Replaces: 548041) |
|
$ 79.08 | |||||
| 54 | 981071 | Cover, Fan Orifice |
|
- | |||||
| 55 | 659202 | Gasket |
|
- | |||||
| 56 | 981076 | Trough, Drain |
|
- | |||||
| 57 | 981070 | Cover, Evaporator |
|
- | |||||
| 58 | 538449 | Grommet, Screw (2) |
|
- | |||||
| 59 | 842436 | Evaporator Support (2) |
|
- | |||||
| 60 | 836040 | Insulator, Spacer (2) |
|
- | |||||
| 61 | 539760 | Insulator, Spacer (8) |
|
- | |||||
| 62 | 984549 | Extension, Drain Trough |
|
- | |||||
| 63 | 488660 | Nut, Speed (Replaces: 486197) |
|
- |
