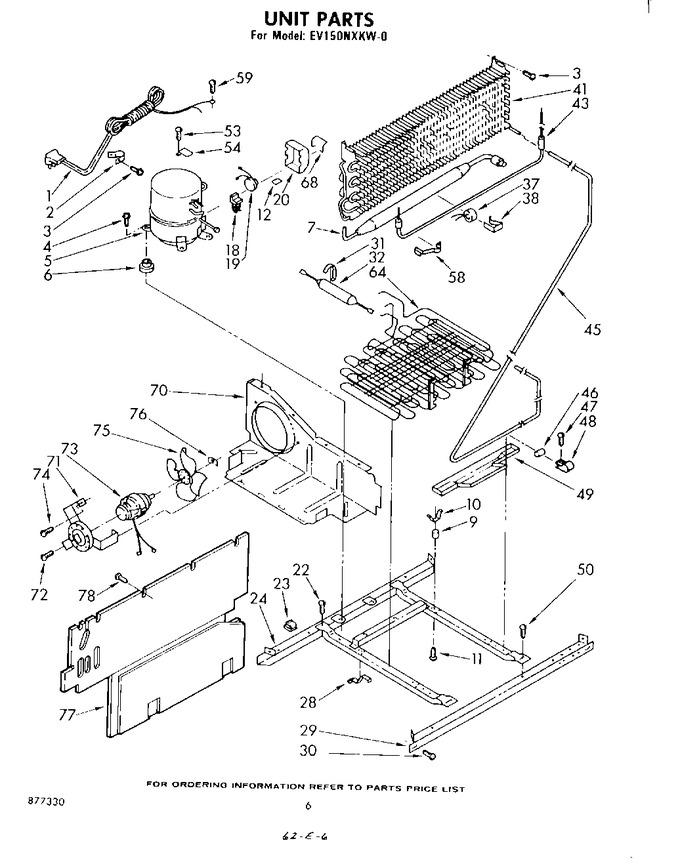

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	850626		Cord, Service		Appelez-nous	-
2	549193		Clamp				$ 12.05
3	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 12.62
4	488400		Screw, 1/4-28 X 1`` (4)		Appelez-nous	-
5	464063		Compressor		Appelez-nous	-
6	547283		Grommet (4)		Appelez-nous	-
7	850596		Header & Tube Assembly		Appelez-nous	-
9	548737		Grommet (4)		Appelez-nous	-
10	548738		Clamp (4)		Appelez-nous	-
11	W11693756		Screw, 8 X 5/8a   (Replaces: 488687)			Immediately	$ 12.65
12	547272		Bumper		Appelez-nous	-
18	989662		Relay		Appelez-nous	-
19	549041		Overload		Appelez-nous	-
20	549945		Cover		Appelez-nous	-
22	303776		Screw, 8-32 X .312 (ground)   (Replaces: 488879)		Appelez-nous	-
23	548745		Clip (2)		Appelez-nous	-
24	548655		Frame		Appelez-nous	-
28	548744		Clip (2)		Appelez-nous	-
29	548663		Rail, Front		Appelez-nous	-
30	489340		Screw, 5/16-18 X 5/8   (Replaces: 488683)		Appelez-nous	-
31	548508		Clamp		Appelez-nous	-
32	W10843121		Drier   (Replaces: 850037)			Immediately	$ 47.31
37	WP4387489		Defrost, Bimetal   (Replaces: 989624)				$ 93.42
38	513584		Clamp		Appelez-nous	-
41	850594		Evaporator		Appelez-nous	-
43	989613		Heater, Defrost		Appelez-nous	-
45	938201		Exchanger, Heat		Appelez-nous	-
46	510769		Dampener (2)		Appelez-nous	-
47	WPW10141625		Screw, 8-32 X 1/2   (Replaces: 488197)				$ 19.04
48	510716		Clamp (2)		Appelez-nous	-
49	989269		Pan, Drip		Appelez-nous	-
50	488454		Screw, 1/4-28 X 1/2		Appelez-nous	-
53	486899		Screw, 6-32 X 1/2		Appelez-nous	-
54	653035		Clip, Plug		Appelez-nous	-
58	548459		Clip, Heater		Appelez-nous	-
58	549696		Clip, Heater (repair)		Appelez-nous	-
59	488474		Screw, 8-32 X 3/8		Appelez-nous	-
64	481846		Precooler & Condenser		Appelez-nous	-
68	531318		Strap		Appelez-nous	-
70	850764		Air, Baffle		Appelez-nous	-
71	548695		Bracket, Fan Motor Mounting		Appelez-nous	-
72	488624		Screw, 8 X 3/8a		Appelez-nous	-
73	833697		Fan Motor (morrill)   (Replaces: 851445)			Immediately	$ 79.34
74	488868		Screw, 8-36 X 3/8st		Appelez-nous	-
75	989524		Fan, Blade		Appelez-nous	-
76	WP486692		Speed Nut   (Replaces: 486692)				$ 7.04
77	850639		Cover, Unit		Appelez-nous	-
78	482398		Start Kit		Appelez-nous	-
78	WP488920		Screw, 8 X 1/2a   (Replaces: 488694)				$ 6.74
78	97825		Valve, Access (1/4``)		Appelez-nous	-
78	978026		Valve, Access (5/16``)			Immediately	$ 115.28
78	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 19.48
78	978028		Valve, Access (1/2)		Appelez-nous	-
78	978029		Valve Access (5/8``)				$ 93.85
78	978030		Valve, Access (3/4``)				$ 117.64
