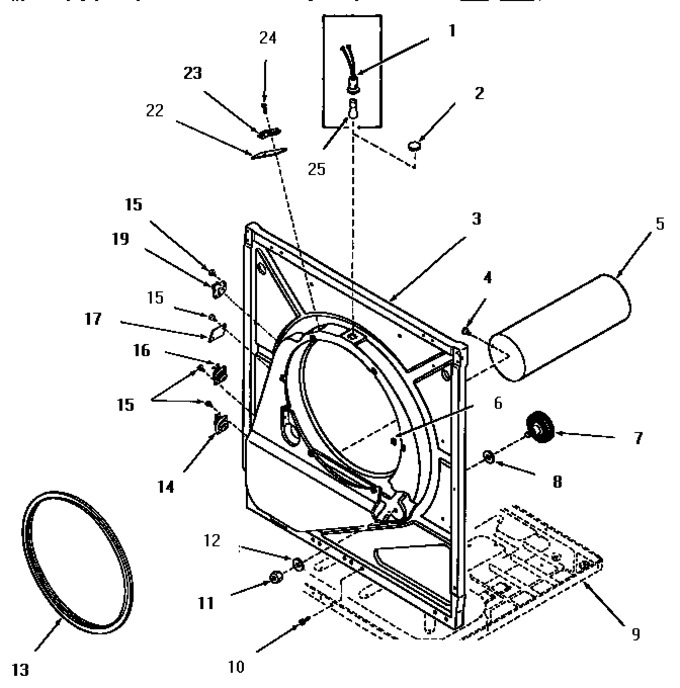

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y0054609 | Sub 56306, Washer |
|
- | |||||
| 2 | 54610 | Plug Button |
|
- | |||||
| 3 | 51850 | Front Frame And Air Shroud |
|
- | |||||
| 4 | 52150 | Screw, Thermostat |
|
- | |||||
| 5 | 51821 | Exhaust Duct |
|
- | |||||
| 6 | 52865 | Speed Nut |
|
- | |||||
| 7 | 53555 | Drum Roller |
|
- | |||||
| 8 | 52123 | Washer |
|
- | |||||
| 9 | Y00000000 | See Note Frame Base |
|
- | |||||
| 10 | WP27001200 | Hex Head Scrw (Replaces: 25723) |
|
$ 6.91 | |||||
| 11 | 52124 | Nut |
|
- | |||||
| 12 | 52122 | Washer |
|
- | |||||
| 13 | 51798 | Gasket |
|
- | |||||
| 14 | 54736 | Thermostat |
|
$ 16.88 | |||||
| 15 | WP3177991 | Screw, 8b-18 X 1/4 He (Replaces: 23222) |
|
Immediately | $ 6.47 | ||||
| 16 | 54737 | Thermostat |
|
- | |||||
| 17 | 52550 | Cover Plate |
|
- | |||||
| 19 | 53708 | Thermostat |
|
- | |||||
| 22 | 52112 | Insulation |
|
- | |||||
| 23 | Y51143 | Switch |
|
- | |||||
| 24 | Sub. To D510158 | Screw,6b-20 X 7/8 Hex (Replaces: 51783) |
|
- | |||||
| 25 | Y54608 | Light Bulb |
|
- |
