SELECT A DIAGRAM

01 - Cabinet Top


02 - Clothes Drum


03 - Control Panel, Control Hood And Controls


04 - Door Release


05 - Exhaust Fan


06 - Front Frame And Air Shroud


07 - Gas Valve (natural / Mixed Gas)


08 - Gas Valve (natural / Mixed Gas)


09 - Heater Box


10 - Loading Door


11 - Motor, Idler And Belt


12 - Panels


13 - Rear Frame And Frame Base


14 - Standing Pilot Burner


15 - Standing Pilot Burner


16 - Wire And Terminals

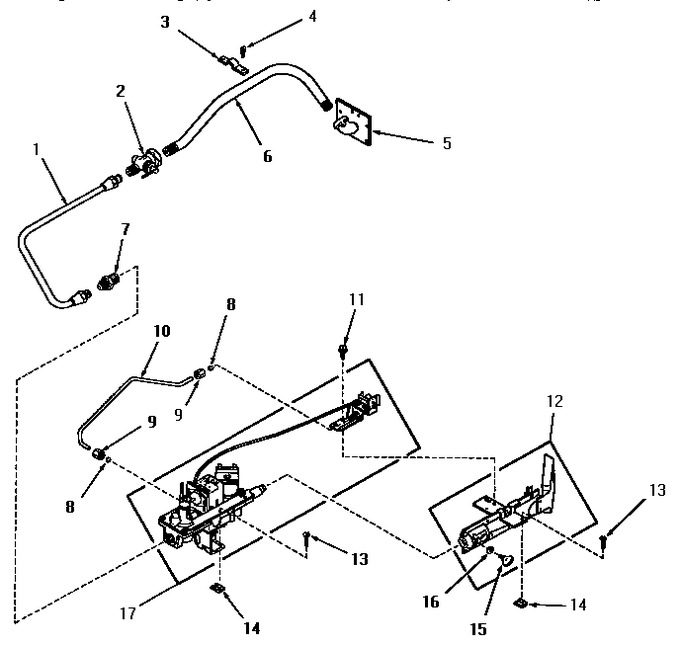

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	54460		Inlet,gas Tube		Appelez-nous	-
2	Y51058		Valve		Appelez-nous	-
3	51828		Gas Pipe Clamp		Appelez-nous	-
4	51784		Screw,10b-16 X 1/2 Hex		Appelez-nous	-
5	51842		Pipe Support		Appelez-nous	-
6	51775		Inlet Gas Pipe		Appelez-nous	-
7	54408		Connector,male		Appelez-nous	-
8	52860		Sleeve,compression		Appelez-nous	-
9	52861		Nut,compression		Appelez-nous	-
10	54489		Tube,pilot		Appelez-nous	-
11	WP90767		Screw,8b-18 X 3/8 Ind   (Replaces: 23962)			Immediately	$ 7.04
12	54471		Tube,burner		Appelez-nous	-
13	20267		Screw,10-24 X 3/8 Round		Appelez-nous	-
14	21747		Nut,speed		Appelez-nous	-
15	54466		Thumb Screw		Appelez-nous	-
16	54735		Washer		Appelez-nous	-
17	54488		Gas Valve		Appelez-nous	-
NI	52894		Sticker		Appelez-nous	-
NI	52893		Sticker		Appelez-nous	-
NI	54491		Sticker		Appelez-nous	-
NI	54495		Plug,block-open		Appelez-nous	-
NI	53408		Label,change-over		Appelez-nous	-
NI	51211		Orifice,lp No.55 Drill		Appelez-nous	-
NI	Y0054476		Gasket, Dr Ref.		Appelez-nous	-
NI	53556		Sticker,conversion		Appelez-nous	-
NI	54477		Cap,vent		Appelez-nous	-
NI	240P3		Kit,conversion		Appelez-nous	-
NI	241P3		Kit,conversion		Appelez-nous	-
NI	51209		Orifice,ng		Appelez-nous	-
NI	20247		Plug,pipe		Appelez-nous	-
NI	54472		Sticker		Appelez-nous	-
NI	54473		Orifice,pilot		Appelez-nous	-
NI	54492		Orifice,pilot		Appelez-nous	-
