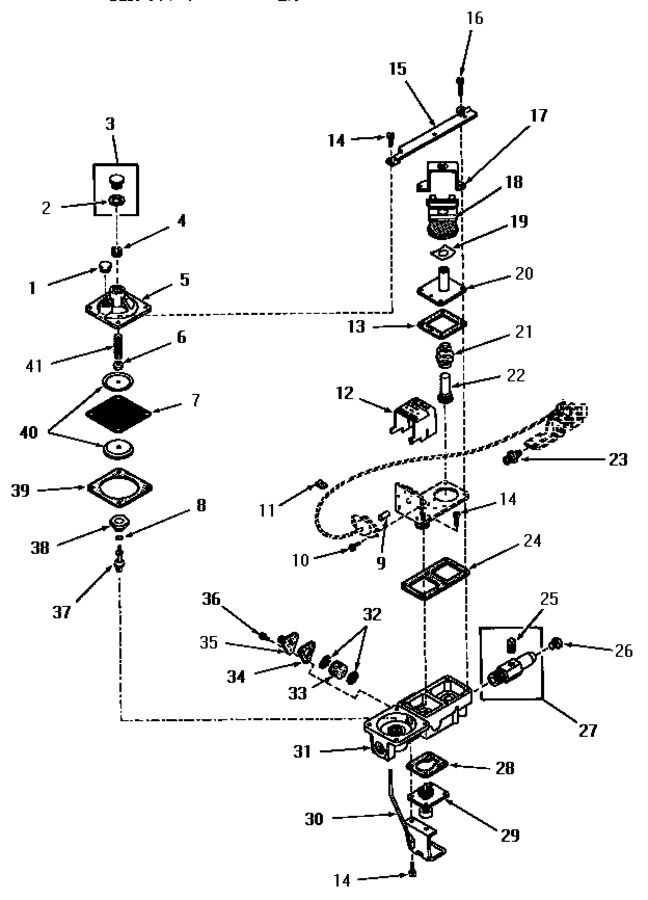

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 54477 | Cap,vent |
|
- | |||||
| 2 | 0054474 | Use D7425607 |
|
- | |||||
| 3 | Y0054476 | Gasket, Dr Ref. |
|
- | |||||
| 4 | 54486C | Regulator Screw |
|
- | |||||
| 5 | 51402Q | Regulator Cover |
|
- | |||||
| 6 | 51402V | Nut |
|
- | |||||
| 7 | 51402X | Diaphragm |
|
- | |||||
| 8 | 51402Y | Gasket |
|
- | |||||
| 9 | 54486Z | Actuating Pin |
|
- | |||||
| 10 | 54486K | Screw |
|
- | |||||
| 11 | 54486N | Clamp |
|
- | |||||
| 12 | 54486G | Latch Cover |
|
- | |||||
| 13 | 54486T | Gasket |
|
- | |||||
| 14 | 54486J | Screw |
|
- | |||||
| 15 | 54485 | Mounting Bracket |
|
- | |||||
| 16 | 54486L | Screw |
|
- | |||||
| 17 | 54486F | Coil Hold-down Bracket |
|
- | |||||
| 18 | 54486A | Coil,burner |
|
- | |||||
| 19 | 51402G | Leaf Spring |
|
- | |||||
| 20 | 54486U | Plunger Guide |
|
- | |||||
| 21 | 51999E | Spring |
|
- | |||||
| 22 | 54486M | Plunger |
|
- | |||||
| 23 | 54473 | Orifice,pilot |
|
- | |||||
| 24 | 54486R | Gasket |
|
- | |||||
| 25 | 20247 | Plug,pipe |
|
- | |||||
| 26 | 51209 | Orifice,ng |
|
- | |||||
| 27 | 0054480 | Net-pan,drain |
|
- | |||||
| 28 | 54486S | Gasket |
|
- | |||||
| 29 | 54486Q | Reset Valve |
|
- | |||||
| 30 | 54486E | Reset Lever And Bracket |
|
- | |||||
| 31 | 54486B | Valve Body |
|
- | |||||
| 32 | 54486X | Filter Screen |
|
- | |||||
| 33 | 54486Y | Filter |
|
- | |||||
| 34 | 54486W | Gasket |
|
- | |||||
| 35 | 54486P | Outlet |
|
- | |||||
| 36 | 54486H | Screw |
|
- | |||||
| 37 | 51402AB | Regulator Pin |
|
- | |||||
| 38 | 51402AA | Regulator Pin Seat |
|
- | |||||
| 39 | 51402Z | Gasket |
|
- | |||||
| 40 | 51402W | Diaphragm Plate |
|
- | |||||
| 41 | 51402U | Regulator Spring |
|
- |
