FRS24BGDW0 | TransGlobal : Appliance Model Lookup

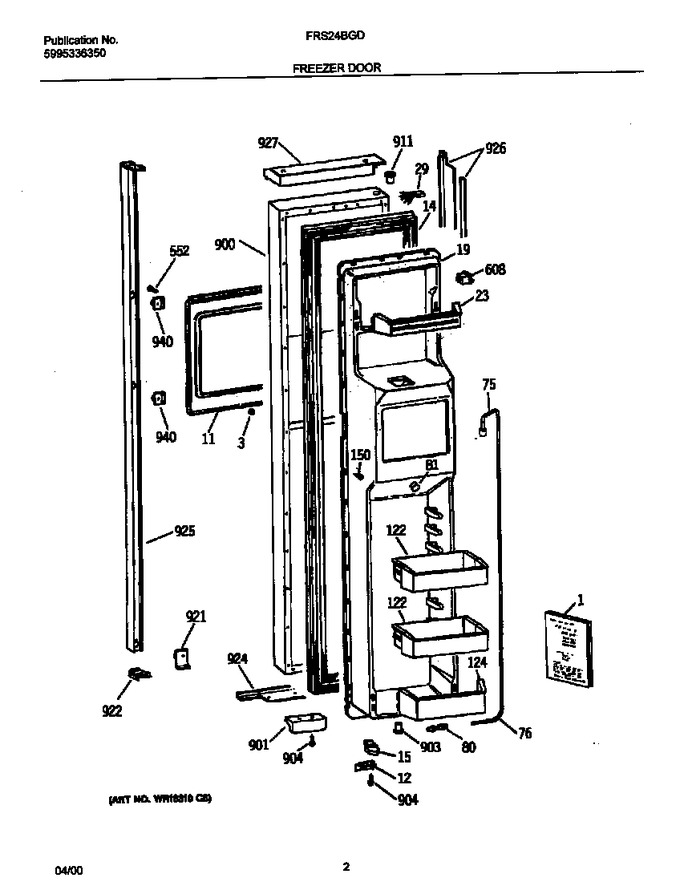

Diagram #	Part Number	Description	Availability	Ships
3	5304406358	Fastener-tubular,(2)	Appelez-nous	-
11	5304406360	Trim-disp Recess,white	Appelez-nous	-
12	5304406361	Door Stop,(2)	Appelez-nous	-
14	5304406362	Gasket-frzr Door,white ,magnetic	Appelez-nous	-
15	5304406364	Door Closer,cam ,white ,frzr Section	Appelez-nous	-
19	5304413798	Panel-inner Door,frzr Section	Appelez-nous	-
23	5304406367	Rack-door,top-frzr	Appelez-nous	-
29	5304415910	Wiring Harness,frzr Door	Appelez-nous	-
75	5304413799	Tube-water,frzr Door ,w/grommet	Appelez-nous	-
76	5304406370	Sleeve-water Tube	Appelez-nous	-
80	5304406353	Nut-compression,5/16 ,union	Appelez-nous	-
81	5304413800	Plug Button,inner Dr Panel	Appelez-nous	-
122	5304406372	Bin-door,(2)	Appelez-nous	-
124	5304406373	Rack-door,bottom-frzr ,w/end Caps	Appelez-nous	-
150	5304406374	Screw-panel Mtg,8-15 ,(84)	Appelez-nous	-
552	5304406375	Screw,12-24tt X 0.900 ,(12)	Appelez-nous	-
608	5304406376	Switch-light/lamp,frzr Door	Appelez-nous	-
900	5304413823	Panel-frzr Door,white ,w/foam Insul	Appelez-nous	-
901	5304406380	Strike-door,white ,(2) ,magnetic	Appelez-nous	-
903	5304406381	Bearing-door Hinge,white ,bottom	Appelez-nous	-
904	5304406383	Screw,10-32 X 1 ,(12)	Appelez-nous	-
911	5304406384	Bearing-door Hinge,white ,top ,(2)	Appelez-nous	-
921	5304406387	Brace-frzr Handle,lower	Appelez-nous	-
922	5304406389	Trim-frzr Handle,white ,bottom	Appelez-nous	-
924	5304406391	Trim-frzr Door,white ,bottom	Appelez-nous	-
925	5304406634	Handle-frzr Door,white	Appelez-nous	-
926	5304406395	Trim-frzr Door,white ,side	Appelez-nous	-
927	5304406397	Trim-frzr Door,white ,top	Appelez-nous	-
940	5304406635	Brace-handle,(4)	Appelez-nous	-
1A	5304413776	Plug Button,ice Maker Cover ,(2)	Appelez-nous	-
1B	5304416100	Technical Guide,mini Manual ,wiring Diagram	Appelez-nous	-
