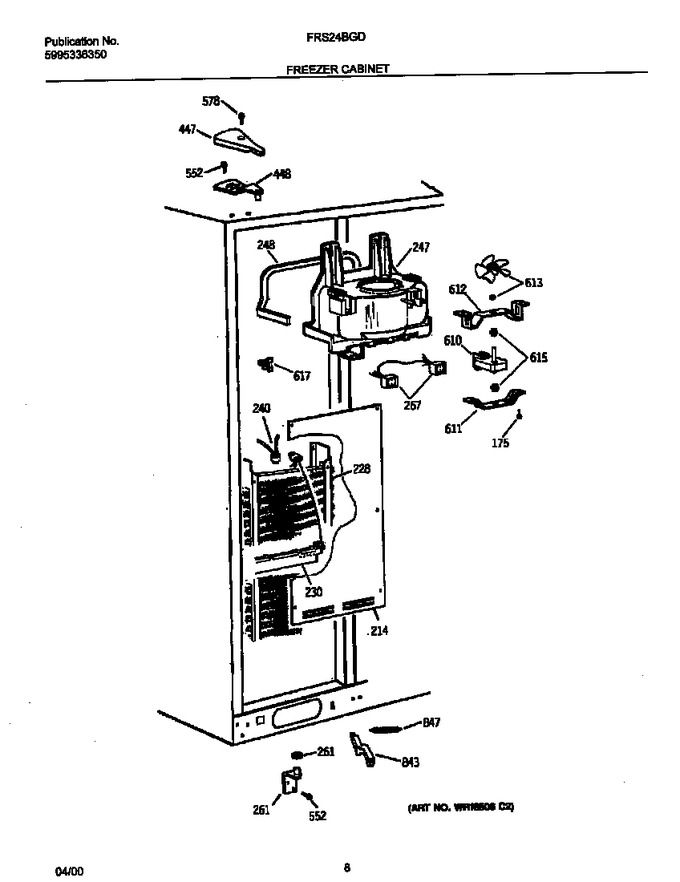

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
175	5304406494		Screw,ind Hex Wshr Hd ,8-18ab X 0.625 ,(18)		Appelez-nous	-
214	5304406642		Cover-evaporator		Appelez-nous	-
228	5304406461		Evaporator,low Side Assy		Appelez-nous	-
240	5304413827		Thermostat-defrost		Appelez-nous	-
247	5304413828		Housing-evap Fan		Appelez-nous	-
248	5304406644		Seal-fan Housing,foam Strip		Appelez-nous	-
261	5304406468		Bracket-lower Hinge,white ,frzr ,w/hinge Pin		Appelez-nous	-
261	5304406469		Washer-thrust,hinge Bracket		Appelez-nous	-
267	5304406646		Wiring Harness,evaporator		Appelez-nous	-
447	5304406471		Cover-upper Hinge,white ,frzr Section		Appelez-nous	-
448	5304413804		Bracket-upper Hinge,frzr Section		Appelez-nous	-
552	5304406375		Screw,12-24tt X 0.900 ,(12)		Appelez-nous	-
578	5304406477		Screw-hinge Cover,8-32 X 0.375 ,(2)		Appelez-nous	-
610	5304406647		Motor-evap Fan		Appelez-nous	-
611	5304406648		Bracket-evap Fan,small		Appelez-nous	-
612	5304406649		Bracket-evap Fan,large		Appelez-nous	-
615	5304406650		Grommet-evap Fan,spacer ,(2)		Appelez-nous	-
617	5304406651		Grommet-screw,(3) ,closed		Appelez-nous	-
843	5304406483		Lever-door Closer,white ,frzr Section		Appelez-nous	-
847	5304406484		Spring-door Closer,(2)		Appelez-nous	-
230A	5304413837		Heater-defrost,with Bracket		Appelez-nous	-
230B	5304413836		Wiring Harness,defrost Heater		Appelez-nous	-
613A	5304413805		Blade-evap Fan		Appelez-nous	-
613B	5308067917		Ring-compression,fan Blade		Appelez-nous	-
