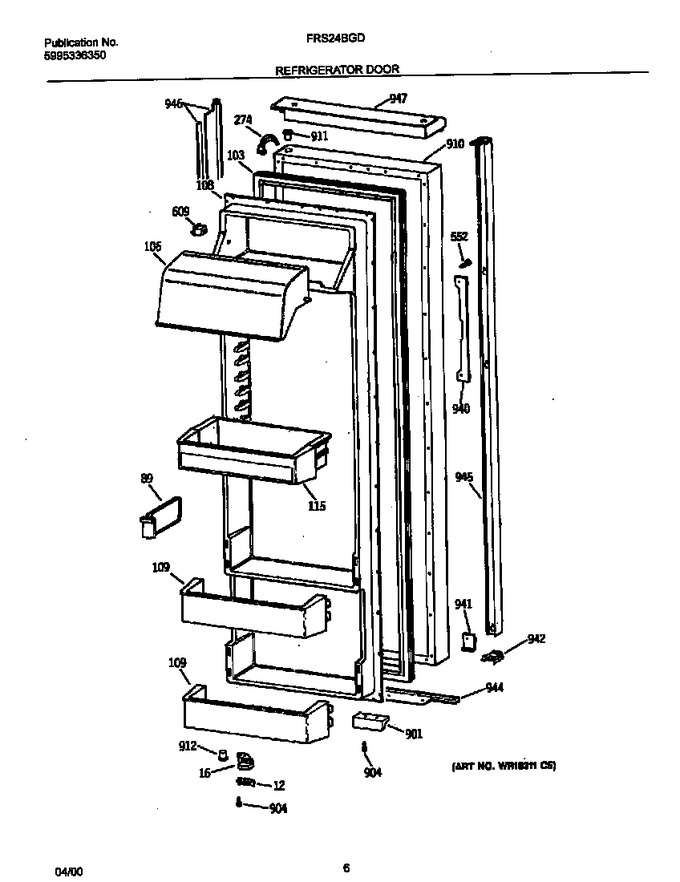

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	5304406361		Door Stop,(2)		Appelez-nous	-
16	5304406433		Door Closer,cam ,white ,refr Section		Appelez-nous	-
89	5304406434		Retainer-bottle,(2)		Appelez-nous	-
103	5304406436		Gasket-refr Door,white ,magnetic		Appelez-nous	-
106	5304406437		Door-dairy,clear		Appelez-nous	-
108	5304406438		Panel-inner Door,refr Section		Appelez-nous	-
109	5304406439		Rack-door,bottom-refr ,(2) ,w/end Caps		Appelez-nous	-
115	5304406440		Bin-door,(2)		Appelez-nous	-
274	5304406441		Wiring Harness,refr Light Sw		Appelez-nous	-
552	5304406375		Screw,12-24tt X 0.900 ,(12)		Appelez-nous	-
609	5304406442		Switch-light/lamp,refr Door		Appelez-nous	-
901	5304406380		Strike-door,white ,(2) ,magnetic		Appelez-nous	-
904	5304406383		Screw,10-32 X 1 ,(12)		Appelez-nous	-
910	5304413825		Panel-refr Door,white ,w/foam Insul		Appelez-nous	-
911	5304406384		Bearing-door Hinge,white ,top ,(2)		Appelez-nous	-
912	5304406446		Bearing-door Hinge,white ,bottom		Appelez-nous	-
940	5304406635		Brace-handle,(4)		Appelez-nous	-
941	5304406449		Brace-refr Handle,lower		Appelez-nous	-
942	5304406451		Trim-refr Handle,end Cap ,white ,bottom		Appelez-nous	-
944	5304406453		Trim-refr Door,white ,bottom		Appelez-nous	-
945	5304406640		Handle-refr Door,white		Appelez-nous	-
946	5304406457		Trim-refr Door,white ,side		Appelez-nous	-
947	5304406459		Trim-refr Door,white ,top		Appelez-nous	-
