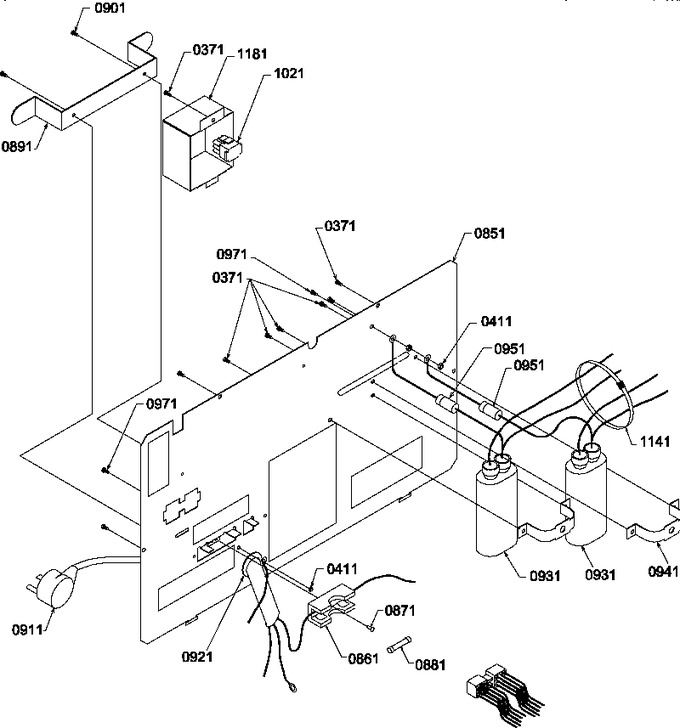

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 371 | WP90767 | Screw (Replaces: M0216716) |
|
Immediately | $ 7.04 | ||||
| 411 | WP488130 | Nut (Replaces: M0282007) |
|
$ 6.27 | |||||
| 851 | R0156978 | Back Panel |
|
- | |||||
| 861 | 10091101 | Fuse Holder |
|
- | |||||
| 871 | WP90767 | Screw (Replaces: M0216529) |
|
Immediately | $ 7.04 | ||||
| 881 | 36108P01 | Fuse, M4d87 |
|
- | |||||
| 891 | 45531P01 | Brkt, Cord Wrap |
|
- | |||||
| 901 | A4539629 | Rivet, Pop |
|
- | |||||
| 911 | 1732000101 | Cord, Power (300) |
|
- | |||||
| 921 | M0370003 | Strain Relief |
|
- | |||||
| 931 | D8547928 | Capacitor-.74 |
|
- | |||||
| 941 | 10825501 | Bracket |
|
- | |||||
| 951 | WP13091701 | Rectifier (Replaces: B8383102) |
|
$ 31.71 | |||||
| 971 | M1D888 | Screw K |
|
- | |||||
| 1021 | 42321P02 | Plug, Tap Set |
|
- | |||||
| 1141 | M0321204 | Wire Tie |
|
- | |||||
| 1181 | 45532P01 | Cover-connector |
|
- |
